What Is a MERV Rating? The Complete 2026 Guide to Air Filter Efficiency

Posted by

September 10, 2026

On September 10, 2026

MERV stands for Minimum Efficiency Reporting Value — a 1 to 16 scale (with 17–20 reserved for HEPA-grade media) that rates how well an HVAC or furnace filter captures airborne particles across three specific size bands. It is the number printed on every filter carton — the air filter MERV rating is the single most useful piece of information on the box, once you know how to read it. It was created by ASHRAE (the American Society of Heating, Refrigerating and Air-Conditioning Engineers) under Standard 52.2, and the U.S. EPA recommends it as the primary yardstick for comparing residential and commercial air filters. The short version for most homeowners: MERV 8 handles everyday dust and pollen, MERV 11 adds finer allergens, and MERV 13 is the EPA’s recommended minimum if you are upgrading for smoke, allergens, or respiratory health — but only if your blower motor and filter slot can handle the added airflow resistance. This guide goes past the standard chart to cover what the rating actually measures, why the “MERV-A” variant exists, how MERV translates to MPR and FPR on store shelves, and the pressure-drop tradeoff that determines whether a higher rating will damage your system.

What a MERV Rating Actually Measures

MERV rating explained in one line: it is the worst-case capture performance a filter sustains across three particle-size bands — a floor, not an average. A MERV rating is not a single efficiency number. It is a matrix of minimum capture efficiencies across three particle size ranges, known as E1, E2, and E3:

E1 — 0.3 to 1.0 µm (submicron): bacteria carriers, tobacco smoke, combustion soot, most virus-laden droplet nuclei
E2 — 1.0 to 3.0 µm: fine dust, auto emissions, paint pigments, some bacteria
E3 — 3.0 to 10.0 µm: pollen, mold spores, pet dander, visible dust, textile fibers

To earn a given MERV value, a filter must clear the minimum efficiency threshold in all three ranges simultaneously — the rating is set by the lowest qualifying performance across the bands, not the highest. This is why two filters sold as “MERV 13” can have very different real-world behavior at one specific particle size: one may capture 90% of E3 particles while barely clearing the 50% E1 floor, while another is balanced across all three. The rating is a floor, not an average.

The test method itself, defined in ASHRAE 52.2, draws a controlled stream of lab-generated test dust of known particle sizes through the filter in a standardized test duct and measures the upstream-vs-downstream count to derive the efficiency curve.

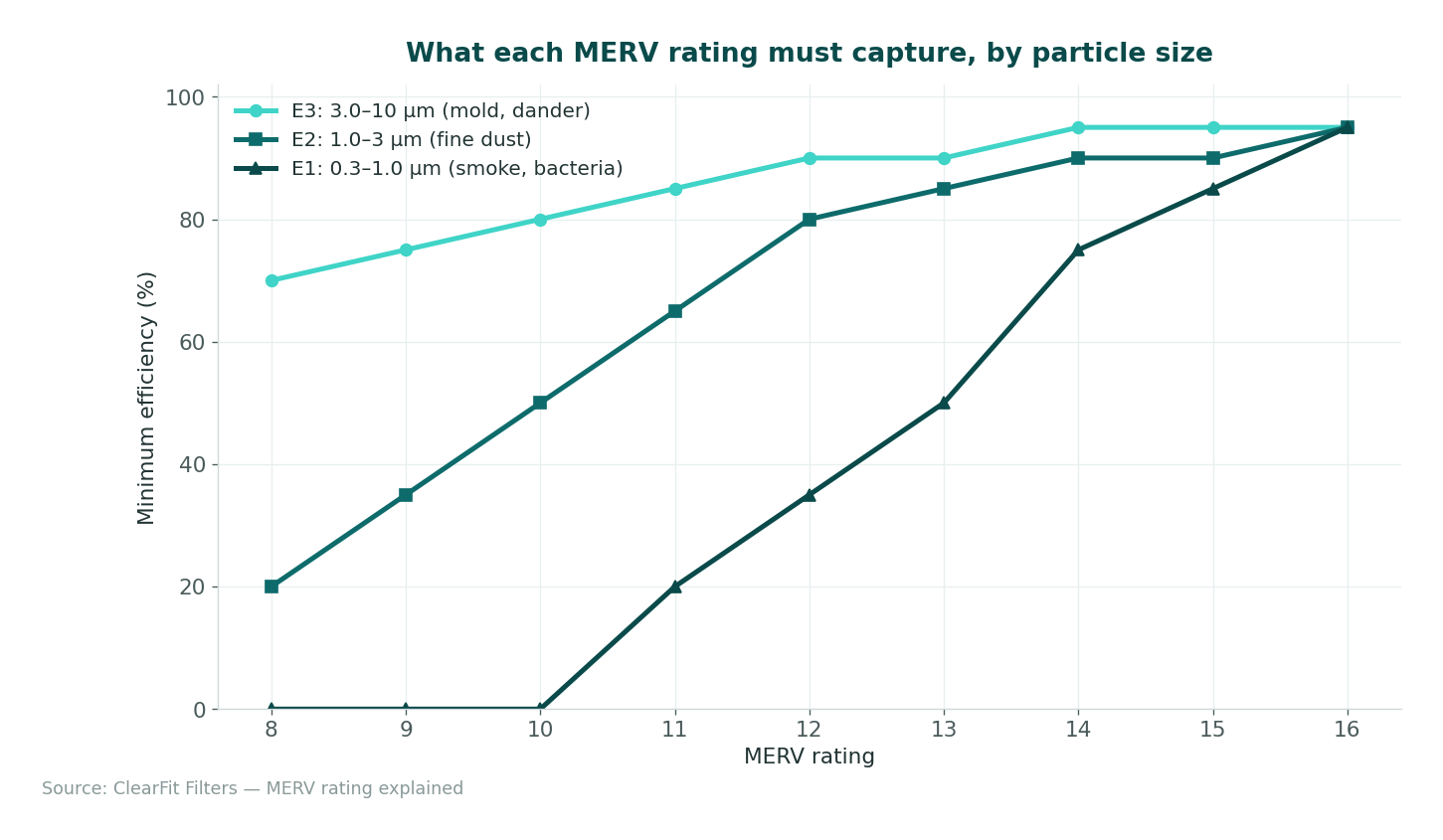

The MERV Rating Chart (ASHRAE 52.2 / EPA Reference)

This is the efficiency table as published by the U.S. EPA, derived directly from ASHRAE Standard 52.2:

MERV	0.3–1.0 µm (E1)	1.0–3.0 µm (E2)	3.0–10 µm (E3)	Typical Targets
1–4	—	—	< 20%	Carpet fibers, dust mites, sanding dust
5	—	—	≥ 20%	Pollen, spray paint
6	—	—	≥ 35%	Dust, textile fibers
7	—	—	≥ 50%	Mold spores (coarse)
8	—	≥ 20%	≥ 70%	Mold spores, pet dander, humidifier dust
9	—	≥ 35%	≥ 75%	Legionella carriers
10	—	≥ 50%	≥ 80%	Auto emissions, lead dust
11	≥ 20%	≥ 65%	≥ 85%	Fine dust, some smoke
12	≥ 35%	≥ 80%	≥ 90%	Welding fumes, fine allergens
13	≥ 50%	≥ 85%	≥ 90%	Bacteria, droplet nuclei, tobacco smoke
14	≥ 75%	≥ 90%	≥ 95%	Most smoke, finer bacteria
15	≥ 85%	≥ 90%	≥ 95%	Hospital-grade
16	≥ 95%	≥ 95%	≥ 95%	General surgery, cleanroom pre-filter
HEPA*	≥ 99.97% at 0.3 µm (MPPS, outside MERV system)	—	—	Cleanrooms, viruses, radioactive dust

*HEPA is defined by DOE standard (99.97% at 0.3 µm MPPS), not the MERV system. MERV 17–20 is sometimes used informally for HEPA-class filters but most spec sheets cite the DOE number directly.

The Four Filtration Mechanisms (Why Higher MERV Isn’t Linear)

Most MERV guides stop at the chart. The reason ratings behave nonlinearly — and the reason a “MERV 13” filter can drop to MERV 8 performance within weeks — comes down to four physical capture mechanisms operating simultaneously on the fiber media:

Interception: a particle following an airstream comes within one particle radius of a fiber and sticks. Dominant for mid-size particles (E2/E3) in the 1–10 µm range.
Inertial impaction: a heavier particle has enough momentum to break from the airstream and collides with a fiber. Dominant for large particles (> 2 µm).
Diffusion (Brownian motion): very small particles (< 0.1 µm) move randomly and eventually collide with a fiber. Dominant in the submicron range and the reason HEPA captures particles smaller than 0.3 µm more efficiently than 0.3 µm itself.
Electrostatic attraction: a charged fiber attracts oppositely charged particles. This is the mechanism that creates the MERV vs MERV-A problem (next section).

The counterintuitive result is the Most Penetrating Particle Size (MPPS) around 0.1–0.3 µm — the exact particle size that neither diffusion nor interception efficiently captures. A true HEPA filter is rated at this MPPS, which is why HEPA’s 99.97% at 0.3 µm is a much harder bar than a MERV 16 that posts 95% E1 efficiency at a less challenging distribution.

MERV vs MERV-A: The “Actual” Efficiency Trap

This is the single most under-covered topic in residential MERV content. MERV-A is an optional test variant added to ASHRAE 52.2 in the 2017 revision (Appendix J) that exposes a critical real-world failure mode:

Many 1-inch residential pleated filters — especially “electrostatically charged” ones sold at big-box stores — achieve their MERV rating largely through electrostatic charge applied during manufacturing.
This charge acts like a magnet, temporarily boosting capture efficiency well above what the mechanical media alone can do.
As the filter loads with dust, the charge is neutralized. A filter sold as “MERV 13” can degrade to the mechanical-only efficiency of roughly MERV 8 within days or weeks.
The MERV-A test conditions the filter to discharge the electrostatic effect before measuring, so it reflects the filter’s minimum sustained efficiency across its service life.

A useful mnemonic: the “A” stands for “Actual” — MERV-A is the rating the filter will actually deliver once the charge is gone.

How to use this as a buyer: look for the MERV-A rating on the spec sheet. If a filter only lists MERV 13 but not MERV 13A, assume the sustained performance is lower. Filters built with mechanical-only media (dense progressive glass or synthetic fiber, no charge) will post identical MERV and MERV-A values. ASHRAE’s 2017 update made MERV-A an optional disclosure, and most reputable commercial-grade manufacturers publish both — many big-box retail filters still do not.

MERV vs MPR vs FPR: Cross-Brand Rating Translation

The MERV scale is the industry standard, but store shelves confuse shoppers with two competing proprietary scales:

MERV	MPR (3M Filtrete)	FPR (Home Depot)	What it catches
1–5	< 300	Below minimum	Pollen, large dust
6	300	4	Dust, lint
8	600	5	Mold spores, pet dander
10	800–1000	6	Fine dust, smog
11	1000–1200	7	PM2.5, allergens
13	1500–1900	10	Bacteria, smoke, virus carriers
14–16	1900+	Above scale	Hospital-grade
17–20	(HEPA territory)	—	Viruses, radioactive particles

Key distinction: MPR (Microparticle Performance Rating, used by 3M’s Filtrete line) is narrower than MERV — it only scores performance on the 0.3–1.0 µm submicron range (the E1 band). A MERV rating covers all three bands, while MPR focuses on the smallest, hardest-to-catch particles. FPR (Filter Performance Rating, Home Depot’s house system) is the broadest of the three but uses a proprietary 1–10 scale. When comparing filters across brands, always convert to MERV before deciding.

MERV vs HEPA vs ISO 16890 (ePM): The International Picture

If you see filter specs citing ePM1, ePM2.5, or ePM10, you are looking at ISO 16890, the international standard adopted in 2016 that replaced the old EN 779 (European) standard. ISO 16890 rates filters by their efficiency against the same particle-size fractions used in ambient air quality standards (PM1, PM2.5, PM10):

MERV (approx.)	ISO 16890 class	Captures
7–9	ePM10 50–70%	Coarse particulate (> 10 µm)
10–11	ePM2.5 50%+	PM2.5 and larger
12–13	ePM1 50%+	Submicron PM1
14+	ePM1 75–95%	Hospital-grade general air
HEPA	(out of scope; uses EN 1822 / ISO 29463)	MPPS 99.97%+

If your equipment was specified overseas (especially commercial systems), the spec sheet may cite ePM1 instead of MERV. The crosswalk above is approximate because ISO 16890 tests with a different test aerosol and reports efficiency differently — treat it as a rough guide, not a one-to-one conversion.

The Pressure Drop Tradeoff: Why “Higher Is Better” Can Break Your HVAC

Higher MERV means denser media (more or finer fibers, tighter pleat geometry). Denser media means more resistance to airflow — measured as pressure drop (static pressure, inches water gauge or “WG). A typical MERV 8 1-inch filter runs around 0.10–0.15″ WG at clean condition; a MERV 13 1-inch filter can start at 0.20–0.30″ WG** and climb as it loads.

This matters because of your blower motor:

PSC (permanent split capacitor) motors — the older single-speed motors found in most HVAC systems over ~10 years old — deliver less airflow as pressure rises. Starving the evaporator coil of air causes it to freeze in summer and trips the high-limit switch in winter. Long-term, the motor overheats and fails.
ECM (electronically commutated, variable-speed) motors — common on newer high-efficiency systems — ramp up to maintain airflow, compensating for higher pressure drop, but at the cost of higher energy draw, more noise, and shorter motor life.

Practical rules:

Check the system’s rated static pressure limit before buying a MERV 13+ filter. Many older furnaces are rated for a maximum external static pressure of 0.50″ WG — a loaded MERV 13 1-inch filter alone can eat half of that.
Move to a 4-inch or 5-inch media filter if you want MERV 11–13 performance. A 4-inch pleated filter has roughly 3–4× the media surface area of a 1-inch at the same MERV, drastically reducing pressure drop.
Replace on schedule. A clogged MERV 13 is worse for airflow than a clean MERV 8 — the dust load on the media multiplies the pressure drop.

Manufacturer MERV Limits (Cross-Brand Reference)

HVAC manufacturers publish the maximum filter resistance their equipment was designed around. Exceeding it can void warranties and starve the system. Below is a cross-brand summary based on publicly available installation manuals — always confirm against the sticker on your unit’s data plate:

OEM	Typical max recommended MERV (residential)	Notes
Carrier / Bryant	10–16 (system-dependent)	Infinity systems with ECM handle MERV 16 media cabinets; base models cap at MERV 10–11
Trane / American Standard	8–13 (1-inch); up to 16 with CleanEffects media	CleanEffects is a proprietary electronic system, not a standard MERV filter
Lennox	8–11 (1-inch base); up to MERV 16 with Healthy Climate media cabinet	X25 series media cabinets rated for MERV 10–16
Rheem / Ruud	up to MERV 8–11 (1-inch)	Higher ratings require matching media cabinet
Goodman / Amana / Daikin	up to MERV 8 (1-inch stock); MERV 11–13 with 4-inch cabinet	One of the more restrictive base configurations
York / Johnson Controls	up to MERV 11 (1-inch); MERV 13–16 with affinity media

General guidance: if your system shipped with a 1-inch filter rack, the manufacturer’s base assumption is MERV 8 or below. To safely run MERV 11+, most OEMs expect you to upgrade the filter rack to a 4-inch or 5-inch media cabinet — this is an aftermarket modification that must match your blower’s airflow rating.

Which MERV Rating Should You Buy?

A practical decision framework:

MERV 6–8 — Default for homes without specific air quality concerns. Captures pollen, dust, lint, and pet dander at low pressure drop. The sweet spot for older systems with 1-inch filter slots and PSC motors.
MERV 9–10 — A small step up for mild allergies or light pet households. Still gentle on most blower motors.
MERV 11 — The recommended upgrade for allergy sufferers. Captures PM2.5-range fine dust and most common allergens. Works in most modern HVAC systems with a 1-inch slot.
MERV 13 — The EPA’s recommended minimum if you are upgrading for wildfire smoke, traffic pollution, or respiratory health (asthma, COPD). Captures ≥ 50% of submicron particles including bacteria carriers and combustion smoke. Verify your system can handle the pressure drop — prefer a 4-inch or 5-inch media cabinet over a 1-inch MERV 13.
MERV 14–16 — Hospital and commercial-grade. Rarely appropriate for residential HVAC without a matched media cabinet and ECM motor.
HEPA (MERV 17–20) — Not suitable for standard ducted HVAC. Use a portable HEPA air purifier (room-by-room) instead — HEPA requires its own fan because of its extreme pressure drop.

FAQ

What is a MERV rating on an air filter?

MERV (Minimum Efficiency Reporting Value) is a 1–16 scale from ASHRAE Standard 52.2 that rates the smallest particles a filter reliably captures: 1–4 for furnace-dirt protection only, 8 as the residential baseline (mold spores, pet dander), 11 for fine allergens, and 13+ for smoke, bacteria carriers, and respiratory-health upgrades. The furnace filter MERV rating and the AC filter MERV rating are the same number on the same filter — one cartridge, one scale.

Is a higher MERV rating always better?

No. A MERV 13 filter in a system rated for MERV 8 can starve the blower of air, freeze the evaporator coil, trip the high-limit switch, and shorten motor life. The correct rating is the highest your system can handle without exceeding its rated static pressure — which often means upgrading to a 4-inch or 5-inch media cabinet if you want MERV 11+.

What MERV rating do I need for wildfire smoke?

Wildfire smoke is dominated by PM2.5 (particles 2.5 µm and smaller), with a significant submicron fraction. The EPA recommends MERV 13 or higher for smoke. For the most penetrating fraction (0.1–0.3 µm), supplement with a portable HEPA air purifier in occupied rooms.

What’s the difference between MERV 13 and MERV 13A?

MERV 13 is the rated efficiency on a clean filter, which may include an electrostatic charge boost. MERV 13A is the sustained efficiency after the charge dissipates — it reflects what the mechanical media alone will deliver throughout the filter’s service life. If a filter only advertises “MERV 13” without “13A,” its real performance may drop as it loads.

Will a MERV 13 filter catch viruses (including COVID-19)?

A MERV 13 filter captures ≥ 50% of 0.3–1.0 µm particles, which includes many virus-laden respiratory droplet nuclei. ASHRAE and the CDC recommended MERV 13 as the minimum for reducing airborne transmission risk in public buildings during the COVID-19 pandemic. It is not a guarantee — for true virus-grade filtration you need HEPA (99.97% at 0.3 µm MPPS), typically delivered by a portable HEPA air purifier.

How often should I replace my air filter?

The general rule: MERV 8 every 90 days, MERV 11 every 60 days, MERV 13 every 30–60 days (higher density loads faster). Homes with pets, allergies, or during wildfire season should check monthly. The most reliable method is to check the filter visually — if you cannot see the media through the dust layer, it is overdue. Use the Home Filter Calendar tool to track replacement dates across all the filters in your home.

Internal Links (suggested)

HVAC air filter size pages (MERV handled by the in-page MERV selector, canonical stays on the size page): /air-filters/16x25x1/, /air-filters/20x25x1/, /air-filters/20x25x4/ — link from the relevant rating recommendations above. (2026-08-21 修正：原 size×MERV 独立页 URL 已被 02-HVAC尺寸集 §4.1 实查数据推翻——MERV 流量在泛词层不在组合层，尺寸页内做 MERV 变体选择器。)
Air filter finder tool: /filter-finder/air/ — link from the “Which MERV Rating Should You Buy?” section and the FAQ.
Home Filter Calendar: /home-filter-calendar/ — link from the replacement-schedule FAQ.
Related concept content (planned): “What Is Micron Rating”, “NSF 42 vs NSF 53”, “OEM vs Aftermarket Filters” — link from the cross-brand rating section.

Unique Value Points (what this page adds beyond SERP competitors)

Four filtration mechanisms explained (interception, inertial impaction, diffusion, electrostatic attraction) plus the Most Penetrating Particle Size (MPPS, 0.1–0.3 µm) concept — no top-20 SERP competitor covers the physics; they all stop at the MERV chart.
ASHRAE 52.2 standard history (1999 origin → 2007 revision → 2017 Appendix J introducing MERV-A) — Camfil mentions 2017 but no competitor gives the full update timeline.
Buyer-side MERV vs MERV-A practical guidance — explains how to read spec sheets (look for the “A” suffix) rather than just defining the term.
ISO 16890 (ePM1/ePM2.5/ePM10) cross-standard table — no top-20 SERP competitor provides the international-standard crosswalk; essential for commercial spec sheets and overseas equipment.
ECM vs PSC blower motor impact with quantitative pressure-drop figures (0.10–0.15″ WG MERV 8 vs 0.20–0.30″ WG MERV 13) — the engineering depth missing from OEM blog posts.
Cross-brand OEM MERV limit table (Carrier, Trane, Lennox, Rheem, Goodman, York) — SERP is dominated by single-brand OEM blogs (Carrier, Trane, Bryant, Lennox) each covering only their own line; this is the only side-by-side comparison.

Sources & References

U.S. EPA — “What is a MERV rating?” (epa.gov/indoor-air-quality-iaq/what-merv-rating, reviewed Jan 2026) — primary MERV 1–16 efficiency table, EPA recommendation of MERV 13 minimum for upgrades. 官方文档.
ASHRAE Standard 52.2 — “Method of Testing General Ventilation Air-Cleaning Devices for Removal Efficiency by Particle Size” (1999, revised 2007, 2017 Appendix J added MERV-A). 官方标准.
ASHRAE Standard 52.2 / ISO 16890 cross-reference — ISO 16890 (2016) replaced EN 779; ePM1/ePM2.5/ePM10 classifications. 官方标准.
DOE / ASME AG-1 — HEPA definition (99.97% at 0.3 µm MPPS). 官方文档.
Camfil (cleanair.camfil.us) — MERV vs MERV-A explanation; electrostatic charge degradation analysis. 行业专家分析.
Service Experts — MERV / MPR / FPR cross-reference chart and residential MERV range guidance. 行业分析.
All Filters (allfilters.com/blog) — MERV 8–13 recommended residential range and application breakdown. 行业分析.
