What Is a Micron Rating in a Water Filter? (And Which One You Actually Need)

Posted by

September 10, 2026

On September 10, 2026

A micron rating is the size of the smallest particles a water filter is designed to capture, measured in microns (one-millionth of a meter). The lower the number, the smaller the particles the filter blocks: a 5-micron filter traps particles down to about 5 microns, while a 0.5-micron filter catches particles ten times finer. That single number, however, only tells you about particle size — it says nothing about chemicals (chlorine, lead, PFAS), dissolved minerals, or whether the filter is actually safe for microbiological threats. Below we break down what the rating really means, the difference between “nominal” and “absolute” (and the Beta ratio the spec sheets hide), how to read NSF/ANSI certifications, a cross-brand refrigerator filter comparison, and how to pick the right micron for your water source.

Micron Rating Explained: How Small Is a Micron?

One micron — also called a micrometer (µm) — equals:

1/1,000,000 of a meter
1/1,000 of a millimeter
roughly 0.00004 inch (about 1/75th the diameter of a human hair)

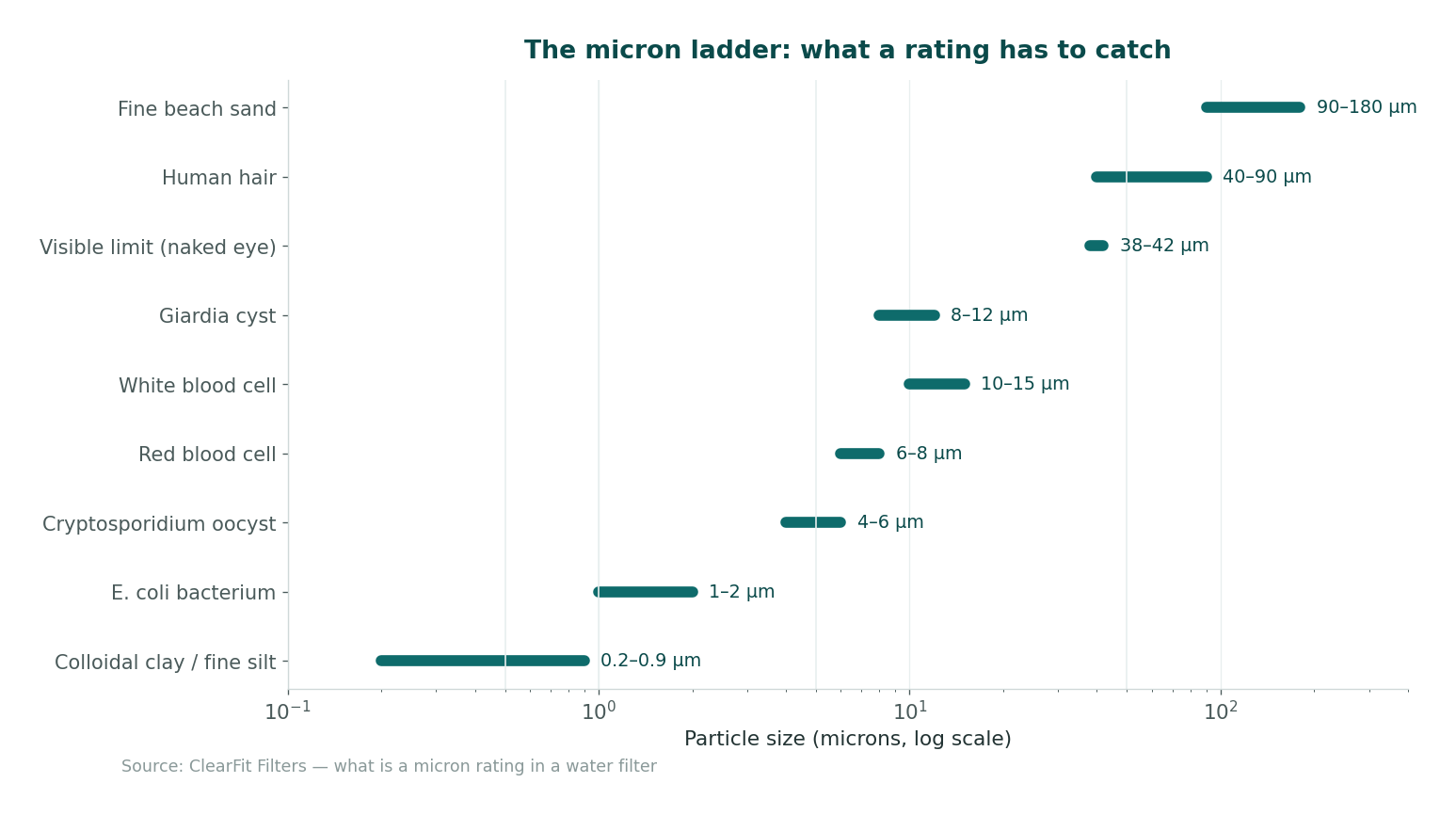

For context against common water contaminants:

Particle	Approximate size
Human hair	40–90 µm
Fine beach sand	90–180 µm
Visible limit (naked eye)	~40 µm
Cryptosporidium oocyst	4–6 µm
Giardia cyst	8–12 µm
White blood cell	~10–15 µm
E. coli bacterium	~1–2 µm
Red blood cell	~6–8 µm
Colloidal clay / fine silt	<1 µm

Anything finer than about 40 microns is invisible without magnification. So when you buy a “5-micron” filter, you are buying something that removes particles you cannot see.

The key catch: “micron rating” is a size claim, not a performance claim

A 5-micron rating means the filter is designed around 5-micron particles. It does not mean “blocks 100% of everything 5 microns and larger.” That distinction — between what a rating describes and what it guarantees — is where most buyers (and a lot of blog posts) get misled.

Nominal vs. Absolute vs. Beta Ratio (What the Spec Sheet Hides)

This is the single most under-explained topic in residential water filtration, and it is where this guide goes beyond the competition.

Nominal rating (most home filters)

A nominal micron rating means the filter captures a high percentage of particles at that size — but not all of them. Industry convention and Water Quality Association guidance put that figure at roughly 85% of particles at the rated size under test conditions. Culligan’s problem-water specialist Gary Falkengren puts it plainly: a typical 5-micron cartridge “may capture about 80% of particles in that range, while some may still pass through.” So a nominal 1-micron filter is not a microbiological barrier.

Absolute rating

An absolute rating is held to a much stricter removal efficiency. In drinking-water certification (NSF/ANSI 53 for cyst reduction, for example), “absolute” generally means ≥99% removal of particles at the stated size under the test protocol. For a 1-micron absolute filter targeting Cryptosporidium (4–6 µm), this is the rating that actually matters.

Beta ratio (β) — the engineering number manufacturers rarely print

In industrial and hydraulic filtration, efficiency is expressed as a Beta ratio (ISO 16890 and the older ISO 4572 / ISO 16889 test methods):

βₓ = (particles ≥ x µm upstream) ÷ (particles ≥ x µm downstream)

So β₅ = 200 means 1 particle out of 200 makes it through — an efficiency of (1 − 1/200) = 99.5%. Common benchmarks:

βₓ ≥ 75 → 98.7% efficient. Widely accepted as a minimum “absolute” rating in fluid-power filtration.
βₓ ≥ 200 → 99.5%. A common food/beverage and high-purity threshold.
βₓ ≥ 1000 → 99.9%. True high-efficiency absolute.

Notice the gap: a residential “absolute” filter (≥99%) and an industrial βₓ ≥ 1000 absolute (99.9%) are both called “absolute” but differ by a factor of 10 in real leakage. When a datasheet only says “absolute 1 micron” with no Beta ratio or no cited test standard, treat the number cautiously and look for the NSF certification instead.

Micron Rating Chart: What Each Range Actually Removes

Micron rating	Removes	Common use	Trade-off
50–100 µm	Sand, grit, visible rust, scale flakes	Spin-down / reusable screen pre-filter; well-water first stage	Does not touch fine sediment or microbes
20–50 µm	Coarse silt, sand, rust chips	Whole-house sediment pre-filter	Still lets fine turbidity through
10–20 µm	Fine dirt, silt, some asbestos fibers	General whole-house sediment	Faster clogging; needs pre-filter upstream on dirty water
5 µm	Fine silt, rust, some mold spores, larger cysts	Most common whole-house cartridge; RO pre-filter	Susceptible to clogging if used alone on heavy sediment
1 µm	Fine sediment, asbestos, reduces some bacteria & cysts (E. coli, Salmonella, Shigella)	Under-sink polishing; well-water final stage	Does not guarantee microbiological safety — use certified absolute
0.5 µm (nominal)	Most cysts (Crypto, Giardia), most bacteria, fine turbidity	Carbon-block refrigerator & under-sink filters	Needs NSF 53 certification to trust cyst claims
Sub-micron (<0.5 µm, absolute)	Bacteria, cysts, very fine colloids	NSF P231 / 0.2 µm absolute “purifier” class	High pressure drop; always staged behind a pre-filter

The pattern: smaller is not automatically better. A 1-micron filter on muddy well water will plug in days; the same water needs a 50 µm → 20 µm → 5 µm staged approach so each cartridge does one job.

NSF/ANSI Standards: What the Certifications Actually Mean

Micron ratings describe size. **Certifications describe verified performance against specific contaminants.** The two are complementary, and the latter is what actually protects you.

NSF/ANSI 42 — Aesthetic Effects. Chlorine taste/odor, nominal particulate reduction (Particulate Class I covers 0.5–1 µm particles at ≥85% reduction; Classes II–VI cover coarser ranges). This is what most refrigerator and pitcher filters are certified to.
NSF/ANSI 53 — Health Effects. Lead, mercury, VOCs, and cyst reduction (Cryptosporidium/Giardia). A 0.5-micron filter certified to NSF 53 for cysts is genuinely trustworthy for that threat; the same micron rating without the certification is a marketing number.
NSF/ANSI 58 — Reverse Osmosis. Covers complete RO systems, including the TDS and contaminant-reduction claims of the membrane (which operates well below 0.001 µm — far finer than any micron-rated cartridge).
NSF/ANSI 401 — Emerging Contaminants. Prescription drugs, herbicides, BPA, etc. A growing category for refrigerator and under-sink filters.
NSF Protocol P231 — Microbiological Water Purifiers. Verifies reduction of bacteria, viruses, and cysts under challenge conditions. This is the certification to look for if you need real microbiological protection beyond sediment — a sub-micron rating alone does not deliver it.

Rule of thumb: micron rating tells you the particle class; NSF certification tells you the real-world contaminant reduction. Always cross-check both.

Cross-Brand Refrigerator Filter Micron Ratings (Comparison Table)

Most refrigerator water filters sold in North America are 0.5-micron nominal compressed carbon-block cartridges, because that is the configuration most easily certified to NSF 42 Particulate Class I (0.5–1 µm) and to chlorine-reduction claims. What actually differs between brands is the certified contaminant list (NSF 53 chemicals, 401 emerging contaminants) and the housing geometry — not the micron rating.

Brand / platform	Representative OEM part #s	Typical micron rating	Primary certification
Whirlpool / EveryDrop	W10295370 (Filter 1), W10413645A (Filter 2), EDR4RXD1 (Filter 4), 4396710	0.5 µm nominal carbon block	NSF 42, 53, 401 (varies by model)
GE	MWF, MSWF, XWF, RPWFE	0.5 µm nominal carbon block	NSF 42, 53, 401
Samsung	DA2900003G, HAFIN2, HAF-CIN	0.5 µm nominal carbon block	NSF 42, 53
LG	LT500P, LT700P, ADQ36006101	0.5 µm nominal carbon block	NSF 42, 53
Kenmore / Amana	46-9010, 12589203, UKF8001 (Filter 4)	0.5 µm nominal carbon block	NSF 42, 53
Bosch / Frigidaire	BORPLFTR50, ULTRAWF, WF3CB	0.5 µm nominal carbon block	NSF 42, 53

Practical takeaway for replacement buyers: the micron rating is essentially fixed across the category, so choosing a compatible replacement should focus on (1) NSF certification parity with the OEM, (2) carbon-block vs. granular (granular carbon filters do not have a true micron rating and perform worse on particulates), and (3) verified fit/flow. You can compare OEM vs. compatible spec sheets on our [refrigerator filter model pages → /filters/refrigerator/].

The Physics: Why Smaller Microns Clog Faster

Residential guides routinely say “smaller filters clog faster” and leave it there. The actual reason is fluid mechanics.

Flow through a porous medium follows Darcy’s law (and its refinement, the Forchheimer equation at higher velocities). In plain terms:

Flow rate is proportional to pressure drop × permeability × area, divided by viscosity × thickness.

Permeability scales roughly with the square of pore size. Drop the pores from 50 µm to 5 µm — a 10× reduction — and permeability falls on the order of 100×. To push the same flow, you need either 100× more pressure (impossible in a home line) or a much larger filter area. This is why fine cartridges are pleated (more area in the same housing) and why running a 1-micron cartridge alone on silty water collapses flow within days: the small pores load with debris that a 20 µm pre-filter would have caught for cents.

The practical design rule the industry uses is staged filtration — coarse to fine — so each stage sees only the particles it was designed for, pressure drop stays manageable, and cartridge life extends from days to months.

Why the “6-Month” Replacement Rule Exists (It’s Not Just “Full”)

Refrigerator and under-sink filters almost universally recommend replacement every 6 months. The reasoning is more specific than “the filter is full”:

Activated carbon has a finite adsorption capacity, measured by its iodine number (typical carbon block: 900–1100 mg/g). Once the pores are saturated with chlorine, VOCs, and organics, the carbon stops adsorbing and the contaminant passes through. Capacity is consumed by total gallons and contaminant load — not by elapsed time alone — but 6 months is the conservative average household duty cycle.
Microbial growth risk. Carbon that has trapped organics becomes a substrate for bacteria. NSF-certified filters include bacteriostatic treatment (e.g., silver-impregnated carbon), but that slows — not eliminates — biofilm growth. Beyond 6 months, colony counts in the downstream water can rise.
Channeling and dumping. A saturated or partially clogged carbon block can develop flow channels; in worst cases it can release previously trapped contaminants in a slug (“dumping”). This is why a filter that “still flows fine” is not necessarily still filtering.
Pressure drop and flow rate. As micron pores load with particulate, pressure drop rises and flow at the dispenser falls — the symptom most homeowners notice first.

A micron rating tells you what the pores block; the 6-month rule protects you from what the media can no longer hold.

How to Choose the Right Micron Rating

City (municipal) water, taste/odor only. A 0.5–5 µm carbon-block cartridge (NSF 42) is usually enough — the utility has already handled microbiology.
City water, lead or VOC concerns. Look for NSF 53 certification; the micron rating is secondary to the certified contaminant list.
Well water with visible sediment. Start with a 50 µm spin-down or reusable pleated pre-filter, then 20 µm, then 5 µm. Add UV or an absolute sub-micron stage only if a water test flags bacteria/cysts.
Well water with confirmed cysts/bacteria. Use NSF 53 (cysts) or NSF P231 certified absolute sub-micron treatment — do not rely on a nominal 1 µm cartridge.
Reverse osmosis pre-filter. A 5 µm sediment cartridge protects the RO membrane from fouling; the membrane itself (nominally 0.0001 µm) does the real work.
Refrigerator replacement. Match the OEM’s NSF certifications and stick with carbon block; the micron rating is already standardized at 0.5 µm nominal across the category.

Not sure when each cartridge in your home is due? Our [Home Filter Calendar tool → /tools/home-filter-calendar/] tracks every filter in the house — fridge, under-sink, whole-house, RO, humidifier, air — and sends you replacement reminders based on the actual install date and water source. See also our [filter spec reference pages → /filter-specs/] for pore size, certified capacity, and flow data on popular cartridges.

FAQ

Is a lower micron rating always better? No. Lower micron ratings capture finer particles but clog faster and raise pressure drop. The right rating depends on your water source and how the filter is staged — a 1 µm cartridge alone on silty well water will fail in days.

What does a 5-micron filter actually remove? Fine silt, dirt, rust flakes, some mold spores, and larger cysts (partially). It does not reliably remove bacteria or dissolved contaminants like chlorine, lead, or PFAS. For taste/chemical removal you need an activated carbon stage; for microbes you need a certified absolute sub-micron or purifier.

Does micron rating tell me a filter removes chlorine or PFAS? No. Micron rating describes particle size only. Chlorine reduction comes from activated carbon (NSF 42); lead and PFAS come from specialized media certified under NSF 53 and emerging standards. Always check the certification, not the micron number.

What’s the difference between nominal and absolute micron ratings? Nominal captures roughly 80–85% of particles at the rated size; absolute is held to ≥99% (and in industrial terms, a Beta ratio of βₓ ≥ 75 or higher). Only absolute, certified filters should be trusted for cyst or bacteria reduction.

What micron rating do I need for refrigerator filter replacements? Nearly all refrigerator filters are 0.5 µm nominal carbon block — so micron rating is not the differentiator. Choose by NSF certification parity with the OEM (42/53/401), carbon block (not granular) construction, and verified fit. Browse our [refrigerator filter model pages → /filters/refrigerator/] for OEM-vs-compatible comparisons.

Unique technical increments in this article (vs. top-ranking SERP competitors)

Beta ratio (β) explained with ISO 16890/4572 benchmarks (β≥75/200/1000) and the “two filters both called absolute differ by 10× leakage” insight — absent from Fresh Water Systems, Culligan, AllFilters, Filterway, Commercial Filtration Supply.
Cross-brand refrigerator filter micron-rating comparison table (Whirlpool/EveryDrop, GE, Samsung, LG, Kenmore/Amana, Bosch/Frigidaire) with the “0.5 µm nominal carbon block is category standard” insight — no SERP competitor covers this because none sell replacement parts.
Darcy’s law physical explanation of why smaller pores clog (permeability ∝ pore²), with the “50→5 µm = ~100× permeability loss” quantification — competitors only say “clogs faster” qualitatively.
NSF/ANSI Particulate Class I (0.5–1 µm) breakdown within NSF 42, plus the 42 vs 53 vs 58 vs 401 vs P231 decision framework — Culligan mentions P231 but no competitor maps all five standards to micron ratings.
6-month rule’s four real causes (iodine-number exhaustion, microbial growth, channeling/dumping, pressure drop) — competitors only say “replace every 6 months.”

Sources cited

Fresh Water Systems — “How Many Microns Should Your Water Filter Be?” (John Woodard, Master Water Specialist; nominal vs. absolute, 0.5 µm cyst/NSF 53/58) — https://www.freshwatersystems.com/blogs/blog/how-many-microns-should-your-water-filter-be
Culligan — “Micron filtration: What micron ratings really mean” (Gary Falkengren quote on 80% nominal capture; NSF/ANSI P231 reference; myth-busting) — https://www.culligan.com/blog/micron-filtration-what-micron-ratings-really-mean
Commercial Filtration Supply — “Micron Ratings – A Better Understanding & Breakdown” (1–800 µm industrial range; micron-to-inch/mm conversions; white-blood-cell analogy) — https://www.commercialfiltrationsupply.com/blogs/resource-center/a-better-understanding-of-micron-ratings
Filterway — “Comprehensive Guide to Water Filter Micron Ratings” (coarse/fine/ultra-fine classification) — https://filterway.com/blog/post/water-filter-micron-ratings-explained
ISO 16890 / ISO 4572 (Beta ratio test methodology for fluid filtration) — engineering standard reference.
NSF/ANSI standards 42, 53, 58, 401, and NSF Protocol P231 — nsf.org certification reference.
Darcy’s law / Forchheimer equation (porous-media flow) — fluid-mechanics reference.
