The short answer up front: A whole house (point-of-entry, or POE) water filter is sized correctly when it sustains your home’s peak gallons-per-minute (GPM) without dropping more than 3–5 psi of supply pressure, and gives the carbon bed enough Empty-Bed Contact Time (EBCT) to actually adsorb the contaminants you targeted. For most U.S. homes that means 7–10 GPM for 2–3 bathrooms, 12+ GPM for 4+ bathrooms, matched to a 1.5 to 2.5 cubic foot (cu ft) carbon tank on city water. The mistake almost every sizing guide repeats is treating “GPM” as the whole decision. It is one of four interlocked variables — peak flow, contact time, micron rating, and contaminant load — and getting any one of them wrong shows up as either a weak shower when the dishwasher runs, a filter that passes chlorine through at month six, or a media bed that exhausts two years early.

This guide goes past the “count your bathrooms” summary that dominates the SERP. It covers the EBCT formula (the engineering number the major brands publish but rarely explain), the NSF/ANSI standard-to-POE applicability matrix (which certifications are even possible on a whole-house system, and which only exist on under-sink units), a cross-brand POE sizing comparison table, the standard filter-housing size codes and their true flow ceilings, and the pressure-drop physics that explains why the prefilter — not the carbon tank — is the real pressure killer in most installs.

The Four Sizing Variables (and Why GPM Alone Is Half the Answer)

Every whole house sizing decision is a trade between four numbers. Miss one and the system underperforms silently.

Variable	What it sets	Engineering reference
Peak demand (GPM)	Tank diameter / cartridge housing size	Fixture count, federal 2.5 GPM shower cap (EPAct 1992)
Empty-Bed Contact Time (EBCT)	Media volume (cu ft) needed to treat that flow	NSF/ANSI 42 & 53 test protocol; AWWA B604 carbon spec
Micron rating	Sediment prefilter stage + any cyst claim	NSF/ANSI 53 cyst = absolute ≤4 μm; nominal vs absolute
Contaminant load	Media type (carbon, catalytic carbon, KDF, RO, ion-exchange)	NSF standard the unit is certified to (42, 53, 401, 55, 58)

The “service flow vs peak demand” distinction the better competitors explain is real but it is a subset of the EBCT question: a tank’s rated service flow is the GPM at which EBCT is still sufficient for the media to perform its certified reduction at the end of rated life. Push past it and you are not just “borrowing flow headroom” — you are shortening the contact time below what the NSF protocol tested.

Step 1 — Calculate Peak Demand (Two Methods That Should Agree)

Method A: Fixture count (the engineering-correct way)

List the fixtures that could realistically run at once on a school morning, and sum their GPM. Federal and EPA WaterSense caps make the per-fixture numbers predictable:

Fixture	Typical flow	Source
Showerhead	2.0–2.5 GPM	EPAct 1992 federal max 2.5; WaterSense 2.0
Kitchen faucet	1.5–2.2 GPM	WaterSense / DOE
Bathroom faucet	1.0–1.5 GPM	Short draws, rarely on the true peak
Toilet refilling	2–3 GPM	Brief but overlaps showers
Dishwasher fill	1–2 GPM	Cyclic
Washing machine fill	2–3 GPM	Cyclic

Two showers + a toilet refill ≈ 7 GPM. Add a washing machine and you are at 10. This is why the rule-of-thumb lands where it does: 2–3 bathroom homes peak 7–10 GPM, 4+ bathrooms 12 GPM or more.

Method B: Bathroom count (the quick cross-check)

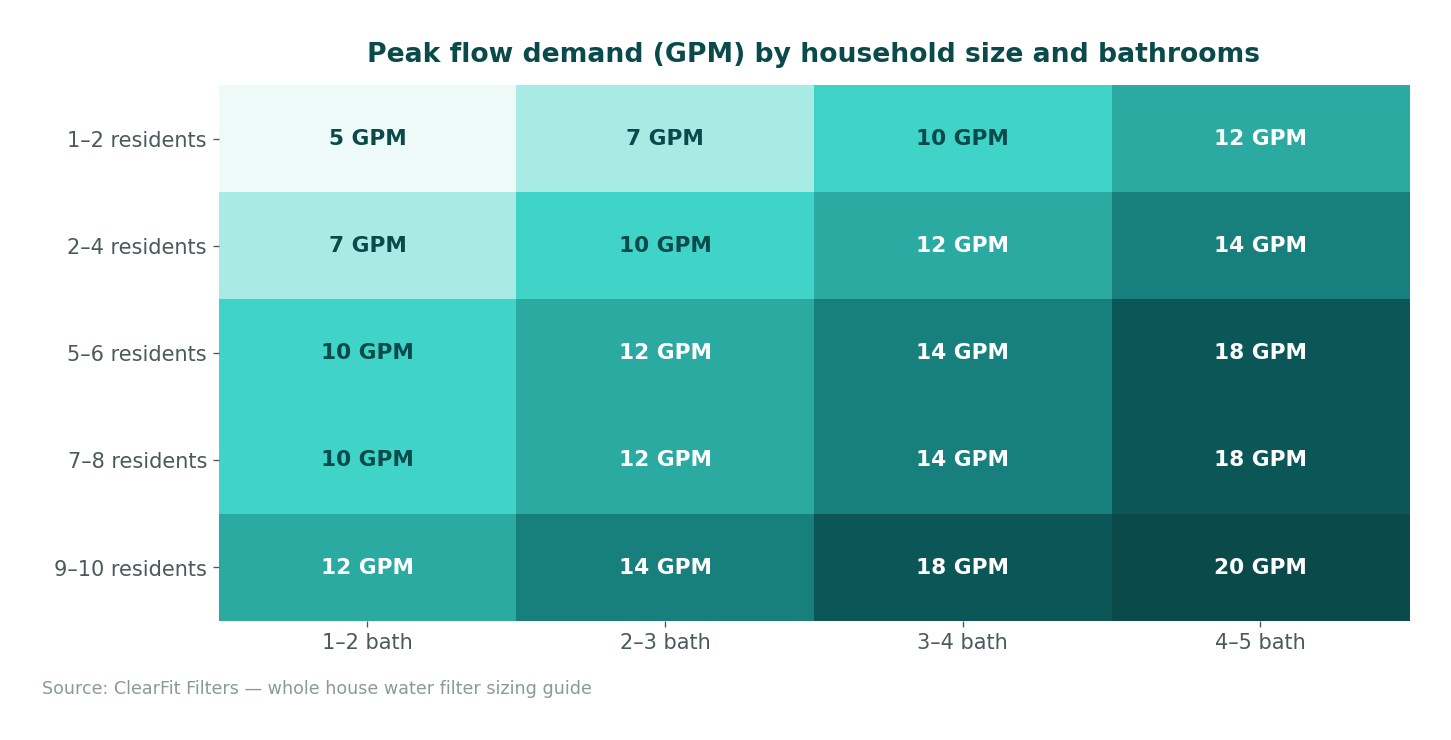

Use this chart, then confirm Method A lands in the same band. If the two methods disagree, trust the fixture count — it captures your household’s actual routine (a 3-person home with two teenagers who shower simultaneously is not a “2-bathroom” load).

Residents	1–2 bath	2–3 bath	3–4 bath	4–5 bath
1–2	5 GPM	7 GPM	10 GPM	12 GPM
2–4	7 GPM	10 GPM	12 GPM	14 GPM
5–6	10 GPM	12 GPM	14 GPM	18 GPM
7–8	10 GPM	12 GPM	14 GPM	18 GPM
9–10	12 GPM	14 GPM	18 GPM	20 GPM

Chart adapted from Pure Water Products’ field-sizing table, cross-checked against Mid Atlantic Water’s 32-year installation data.

Don’t forget irrigation. Sprinkler zones on the treated line while the family showers push the peak well above the fixture-count estimate. Add the zone GPM explicitly if it applies.

Pipe size is a hard ceiling

This is the constraint competitors mention but rarely quantify. Your filter cannot flow more than your main line delivers, and the limit is set by fluid velocity, not the filter’s rating:

Main line	Safe carrying GPM (velocity ≤ 8 ft/s)
3/4″ copper / PEX	8–10 GPM
1″ copper / PEX	15–18 GPM
1.25″ copper	25+ GPM

If your home is plumbed in 3/4″, a “20 GPM rated” filter buys you nothing — you will never deliver 20 GPM to it. Match the filter to the plumbing first; this single check eliminates the most common overspend.

Step 2 — Size the Carbon Bed by EBCT (The Variable Competitors Won’t Formula)

This is the engineering number that separates a sizing guide from a marketing page. EBCT (Empty-Bed Contact Time) is the seconds the water spends inside the carbon bed, calculated from the bed volume and the flow:

EBCT (seconds) = Bed volume (ft³) × 7.48 (gal/ft³) / Flow (GPM) × 60

(Since GPM is gallons per minute and we want seconds, multiply by 60.)

What EBCT each contaminant needs

Adsorption is a diffusion-limited reaction — molecules have to diffuse into the carbon’s micropores before the water leaves the bed. Fast-reacting contaminants need less time; slow ones need more:

Target	Minimum EBCT	Why
Free chlorine (NSF 42)	~2 seconds	Fast redox reaction on carbon surface
Chloramine (NSF 42 claim)	~5–7 seconds	Two-step decomposition; needs catalytic carbon (Centaur / Centaur CSriP) and longer dwell
VOCs, lead complexes (NSF 53)	~3–5 seconds	Pore-diffusion limited; iodine number ≥1000 mg/g
PFOA/PFOS (NSF 53, 2022+)	~5+ seconds	Slow adsorption; coconut-shell micropore carbon

Worked example

You sized your home at 10 GPM peak. Your utility uses chloramine (increasingly common — check your Consumer Confidence Report). Minimum EBCT for chloramine is ~6 seconds.

Bed volume = EBCT × Flow / (7.48 × 60) Bed volume = 6 × 10 / (7.48 × 60) = 60 / 448.8 ≈ 0.13 ft³… at the carbon-bed level

That is the minimum active carbon volume for chemistry alone. In practice you also need volume for capacity (gallons between media changes) — a 1.5 cu ft tank gives roughly 3–5 years of chloramine life at typical city dosing, while a 2.5 cu ft tank gives 5–7 years. So the chemistry floor and the maintenance floor both push you toward 1.5 cu ft minimum, 2.5 cu ft preferred, for any 8–12 GPM home on chloraminated city water. This is the structural reason the major brands’ two tiers collapse to those two sizes.

The trap: a manufacturer publishing only a “12 GPM” rating without naming whether that is the EBCT-valid service flow or a burst maximum is hiding the contact-time question. Push 12 GPM through a 1.0 cu ft tank and EBCT collapses to ~3.7 seconds — fine for chlorine, marginal for chloramine, inadequate for PFAS at end-of-life.

Step 3 — Match NSF Standard to POE Reality

This is the gap almost no sizing guide addresses. Not every NSF standard is achievable on a whole-house system, and knowing which ones are changes what your POE filter can honestly claim.

NSF/ANSI standard	Scope	Realistic on POE?	Why
42 — Aesthetic	Free chlorine, chloramine, particulate, taste/odor	Yes	Easy chemistry; standard POE carbon clears this comfortably with 2s+ EBCT
53 — Health effects	Lead, cysts, VOCs, asbestos, PFOA/PFOS	Conditional	Lead and PFAS claims need longer EBCT than most POE tanks provide; cysts need a sub-micron stage that kills flow. Most POE 53 claims are for VOCs only, verified per-model
401 — Emerging contaminants	Pharmaceuticals, BPA, flame retardants	Rare on POE	Test is POU-oriented; POE certification is uncommon
55 — UV	Class A (worst-case) / Class B (clean-water) microbial	Yes (as a UV stage)	Sized by UV dose (mJ/cm²), not GPM; Class A needs 40 mJ/cm²
58 — Reverse osmosis	TDS, lead, fluoride, radioum	No (POU only)	RO is point-of-use by physics — a POE RO system would waste thousands of gallons/day
P231 — Microbiological	Bacteria, virus, cysts	Possible but flow-limited	Tight micron / ceramic media drops flow dramatically; usually POU

Implication for sizing: if a vendor’s POE system lists “NSF 53 lead” without the per-model data sheet, ask for the EBCT at which the claim was tested. A 1.5 cu ft tank at 10 GPM is at the edge of the contact time most 53-lead protocols assume. For lead service-line protection at the kitchen sink, an under-sink NSF 53-certified carbon block + RO (NSF 58) is usually the more honest engineering answer than a whole-house 53 claim.

Step 4 — Pick the Housing Size Code (Sediment + Carbon Stages)

For cartridge-based systems (as opposed to tank-based media beds), the housing dimension code controls both flow ceiling and cartridge life. These are industry-standard sizes, not brand-specific:

Size code	Dimensions	Realistic sustained GPM	Typical use
Standard 10″	10 × 2.5″	2–4 GPM	Point-of-use, single-fixture, RV, refrigerator
10″ Big Blue	10 × 4.5″	5–8 GPM	Small home POE, 1–2 bath
20″ Standard	20 × 2.5″	4–6 GPM	Light POE (flow limited by 2.5″ diameter)
20″ Big Blue	20 × 4.5″	10–15 GPM	Standard POE for 2–4 bath homes — the workhorse
4.5 × 20″ BB (high-flow)	20 × 4.5″ with 1″ ports	15–20 GPM	Large POE, 4+ bath

The reason a 2.5″-diameter cartridge is flow-limited regardless of length: pressure drop scales with velocity squared through the media (Darcy-Weisbach). Doubling diameter quadruples surface area while halving velocity — which is why a 4.5″ Big Blue outperforms a 2.5″ of the same length by ~4× on flow and ~3–4× on cartridge life. This is also why replacing a 20″ Big Blue with a cheaper 20″ standard cartridge on a 3-bath home is a common silent failure.

Cross-Brand POE Sizing Comparison (City Water Carbon Systems)

Competitors publish their own numbers; few publish a side-by-side. Capacities and prices reflect 2026 manufacturer spec sheets — verify per-SKU before purchase, and treat prices as bands, not quotes.

Brand / model family	Tank size	Rated peak GPM	Media life (city water)	NSF cert (typical)	Price band (USD)
Aquasana Rhino EQ-1000	1 cu ft equiv. (composite)	7 GPM	10 yr / 1,000,000 gal	42, 53 (select), 401 (select)	$1,500–1,900
Pentair CF20P / CF30P	1.0–1.5 cu ft	8–10 GPM	5–7 yr	42	$600–900
SpringWell CF1	1.0 cu ft (upflow)	12 GPM (burst)	1,000,000 gal claim	42, 53 (select)	$700–900
iSpring WGB32B (3-stage)	20″ BB cartridges	15 GPM (housing)	6–12 mo/cartridge	42, 53 (lead select)	$300–500
Pelican Carbon Series	1.5–2.0 cu ft	10–12 GPM	5 yr / 600,000 gal	42, 53 (select)	$1,600–2,000
Mid Atlantic Clack 1.5 cu ft	1.5 cu ft Vortech	7–8 GPM	3–5 yr	42 (system)	~$1,495
Mid Atlantic Clack 2.5 cu ft	2.5 cu ft Vortech	10–12 GPM	5–7 yr	42 (system)	~$1,695

Read the table this way: the price-to-contact-time ratio favors tank-based upflow systems (Pelican, Mid Atlantic Clack) over cartridge-based systems (iSpring) once you cross ~10 GPM — the tank gives you 5+ years of media life versus 6–12 months on a Big Blue cartridge, with comparable upfront cost. Cartridge systems win on upfront price and simplicity; they lose on 5-year cost of ownership for medium-to-large homes.

The Pressure-Drop Question (and Why the Prefilter Is the Real Culprit)

The most common sizing question — “will this slow my water down?” — has a precise answer. A correctly sized whole house carbon tank drops about 2–5 psi at peak flow, undetectable on a typical 40–80 psi city supply. When pressure complaints are traced, the cause is almost never the tank. It is one of three:

Undersized tank — pushing 12 GPM through a tank built for 7. Pressure drop scales steeply once you exceed service flow.
Gravel-underbed tank design — older or competitor tanks sit media on a gravel layer that restricts flow. Modern Vortech distributor plates eliminate the gravel and recover the lost psi.
Clogged sediment prefilter — the silent killer. A 2.5″-diameter sediment cartridge loaded with debris can eat 15+ psi on its own. A 4.5″ Big Blue at 5 μm loads slower, drops less, and lasts far longer. Put a pressure gauge on each side of the cartridge housing; when they read 10+ psi apart, change the cartridge.

The physics: flow through a porous medium follows a Darcy-type law where ΔP ∝ (viscosity × velocity × bed depth) / permeability. For a clean carbon bed, permeability is high and ΔP is small. For a clogged sediment cartridge, permeability collapses and ΔP dominates the system. This is why the prefilter, not the carbon tank, is where most homeowners’ pressure problems live.

Five-Step Sizing Workflow

Calculate peak GPM by fixture count (Step 1). Confirm against the bathroom chart. Cap at your pipe’s carrying capacity.
Identify your disinfectant from your utility’s Consumer Confidence Report — chlorine vs chloramine changes the EBCT requirement and the carbon type (standard vs catalytic).
Compute the minimum cu ft from EBCT (Step 2), then round up for capacity (media life). Most city-water homes land at 1.5 or 2.5 cu ft.
Select the NSF standard you need (Step 3) and verify per-model certification on NSF’s official database. Do not trust “NSF certified” without the standard number and named claims.
Pick the prefilter housing — 20″ Big Blue with 4.5″ diameter for any 2+ bath home. This is the single upgrade that prevents 80% of pressure complaints.

Common Sizing Mistakes

Buying on GPM rating alone without checking EBCT — a 12 GPM “rating” on a 1.0 cu ft tank is a burst number, not a service flow.
Treating NSF 42 and NSF 53 as tiers — they are independent claim sets. A POE system can be NSF 42-only and still be the right size for your flow.
Oversizing a downflow tank — at low flow, water channels through the media instead of using the full bed (a failure mode called channeling). Upflow/Vortech designs avoid this.
Forgetting chloramine — a system sized for chlorine EBCT (2s) will underperform on chloramine (5–7s). Most U.S. utilities are migrating to chloramine; size for it.
Ignoring the prefilter — the cheapest part of the system controls the most common failure mode.

Frequently Asked Questions

How many GPM does a whole house water filter need? Match the filter to your home’s peak demand, not the average. A 2–3 bathroom home peaks at 7–10 GPM; a 4+ bathroom home at 12 GPM or more. A single fixture rarely exceeds 2.5 GPM (federal showerhead cap), so peak is really a question of how many fixtures run simultaneously.

How do I size a whole house filter for chloramine? Use catalytic carbon (Centaur or equivalent) and target 5–7 seconds EBCT rather than the 2 seconds adequate for free chlorine. For a 10 GPM peak, that means at minimum a 1.5 cu ft tank, with 2.5 cu ft preferred for media life. Standard (non-catalytic) coconut carbon will underperform on chloramine regardless of bed size.

Does pipe size affect whole house filter sizing? Yes, decisively. A 3/4″ main line tops out at 8–10 GPM; a 1″ line at 15–18 GPM. Your filter cannot flow more than your plumbing delivers, so a 20 GPM-rated filter on a 3/4″ line is wasted spend. Always size to the smaller of (peak demand, pipe capacity).

Will a whole house filter reduce my water pressure? A correctly sized system drops 2–5 psi — imperceptible on a typical 40–80 psi supply. Real pressure loss almost always traces to an undersized tank, a gravel-underbed design, or a clogged sediment prefilter (which alone can eat 15+ psi). Install dual pressure gauges around the prefilter to catch this early.

What NSF certification should a whole house filter have? For city water aesthetic treatment (chlorine/chloramine, taste, odor), NSF/ANSI 42 is the baseline. NSF/ANSI 53 claims (lead, VOCs, cysts, PFOA/PFOS) are achievable on POE but verify per-model — they require longer EBCT than a small tank delivers. NSF 58 (RO) is point-of-use only by physics; do not expect a true POE RO system. For microbial protection, NSF 55 UV as a separate stage is the POE-appropriate choice.

Is a bigger whole house filter always better? In an upflow/Vortech tank design, mostly yes — more media means more contact time and longer life, and the upflow motion prevents channeling. In a downflow tank, dramatic oversizing causes channeling (water cuts preferred paths through the bed), so match downflow tanks to your real flow range.
