How Often to Change Your Furnace Filter: the ASHRAE-Pressure View of the HVAC Schedule

Posted by author-avatar
0

Short answer: every 30–90 days for a 1-inch filter, every 6–12 months for a 4–6 inch media filter. But that calendar range is only the starting point — the schedule that actually protects your equipment is decided by filter thickness (pleat surface area), MERV rating, static pressure, hours of blower runtime, and six household variables. The rule that beats all of them: track 200–300 hours of fan operation, not the date on the wall.

This guide goes past the “every 90 days” line every retailer repeats. Whether you phrase the question as how often to change a furnace filter, how often to change an air filter, or should I change my furnace filter yet — the answer is the same machine, the same physics, and mostly the same schedule. We cover the ASHRAE 52.2 test method behind MERV ratings, the pleat-area physics that makes a 4-inch filter last 4–6× longer than a 1-inch, the total external static pressure (TESP) numbers that show exactly when a dirty filter starts breaking your blower, and a cross-brand media-filter life table (Carrier, Trane, Lennox, American Standard, Goodman) you will not find on any single manufacturer’s page — so you understand why the schedule exists, not just when.

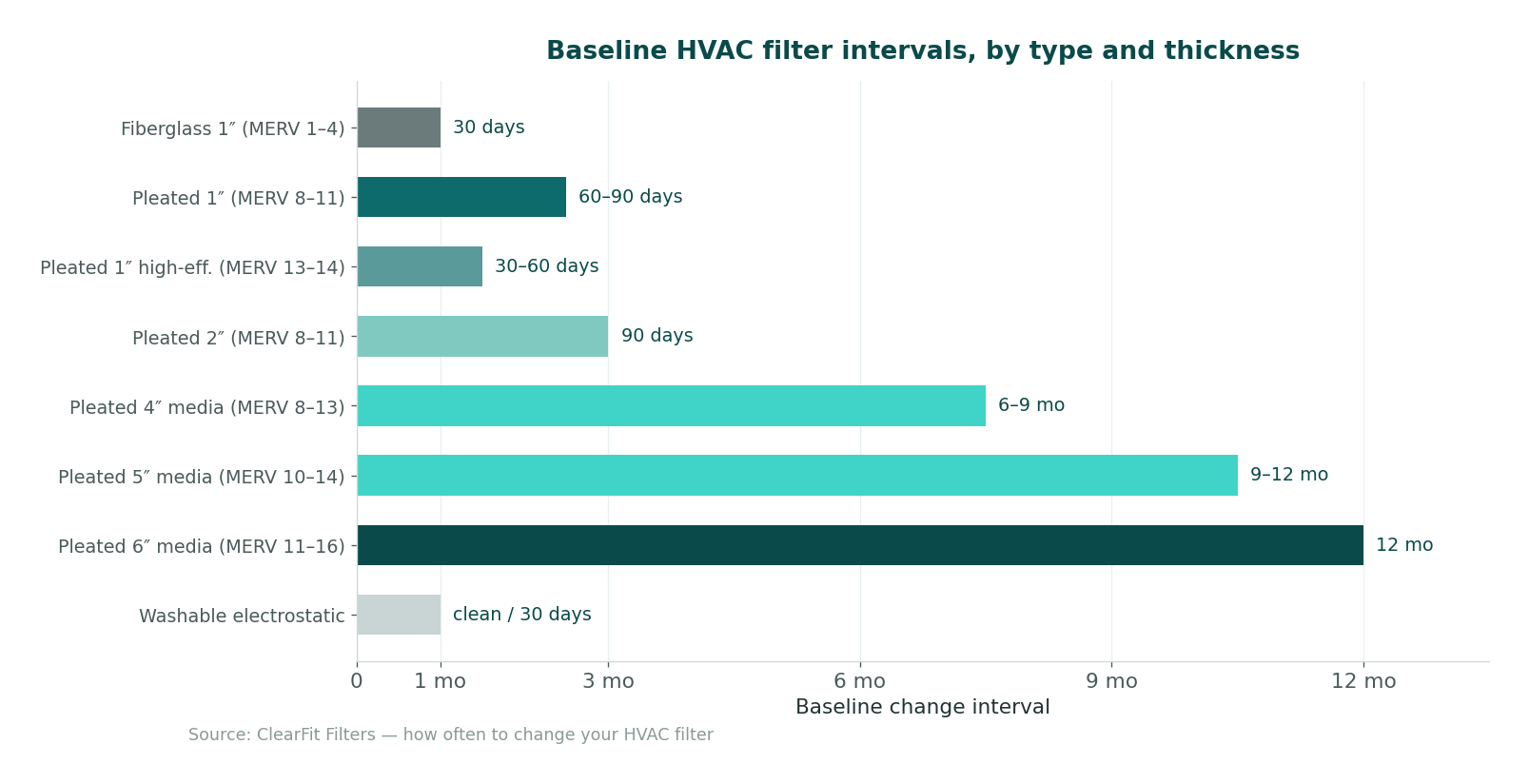

The Baseline Schedule (by filter type and thickness)

The 30–90 day figure you see everywhere is a blend of two very different filters. Broken out properly:

Filter TypeThicknessTypical MERVBaseline Change Interval
Fiberglass (disposable)1″1–430 days
Pleated (disposable)1″8–1160–90 days
Pleated (high-efficiency)1″13–1430–60 days (denser media clogs faster)
Pleated2″8–1190 days
Pleated4″ media8–136–9 months
Pleated5″ media10–149–12 months
Pleated6″ media11–1612 months
Washable (electrostatic/cleanable)1–2″4–8Clean every 30 days (replace media every 3–7 yr)

Two things jump out that most guides skip. First, the 1-inch MERV 13–14 filter does not last as long as a 1-inch MERV 8 — denser media captures more, but loads up faster. Second, “washable” is misleading: the cartridge may last years, but you still service it monthly, so the labor interval is the same as a cheap fiberglass filter.

Why Thickness Wins: the Pleat-Area Physics Nobody Explains

Every guide tells you “thicker filters last longer.” Almost none say why, so homeowners assume thicker = “more filter material doing the same job.” That is backwards. A 4-inch filter lasts longer because it has more surface area doing less work per square inch.

A pleated filter is folded, not flat. The actual media area is the number of pleats × pleat height × face dimensions. Rough geometry:

Nominal FilterFace AreaPleat DepthApprox. PleatsUnfolded Media Area
20×25×1″500 in²~0.5″~25–30~1.5–2.0 ft² effective
20×25×4″500 in²~3.5″~20–24~7–9 ft² effective
20×25×5″500 in²~4.5″~18–22~9–12 ft² effective

The 4-inch cartridge carries roughly 4–6× the cloth of the 1-inch at the same face size. Dust is distributed across that larger area, so the same daily dust load takes 4–6× longer to reach the point where airflow is choked. That is the whole reason for the 6–12 month life — it is not marketing, it is geometry. The same physics is why deeper pleats at the same thickness can extend life further: more media area per cubic inch of cartridge.

This is also why you should be suspicious of “high MERV 1-inch” filters. A MERV 13 rating on a 1-inch cartridge packs very fine media into very little cloth. It will hit its pressure limit weeks before a MERV 8 of the same size.

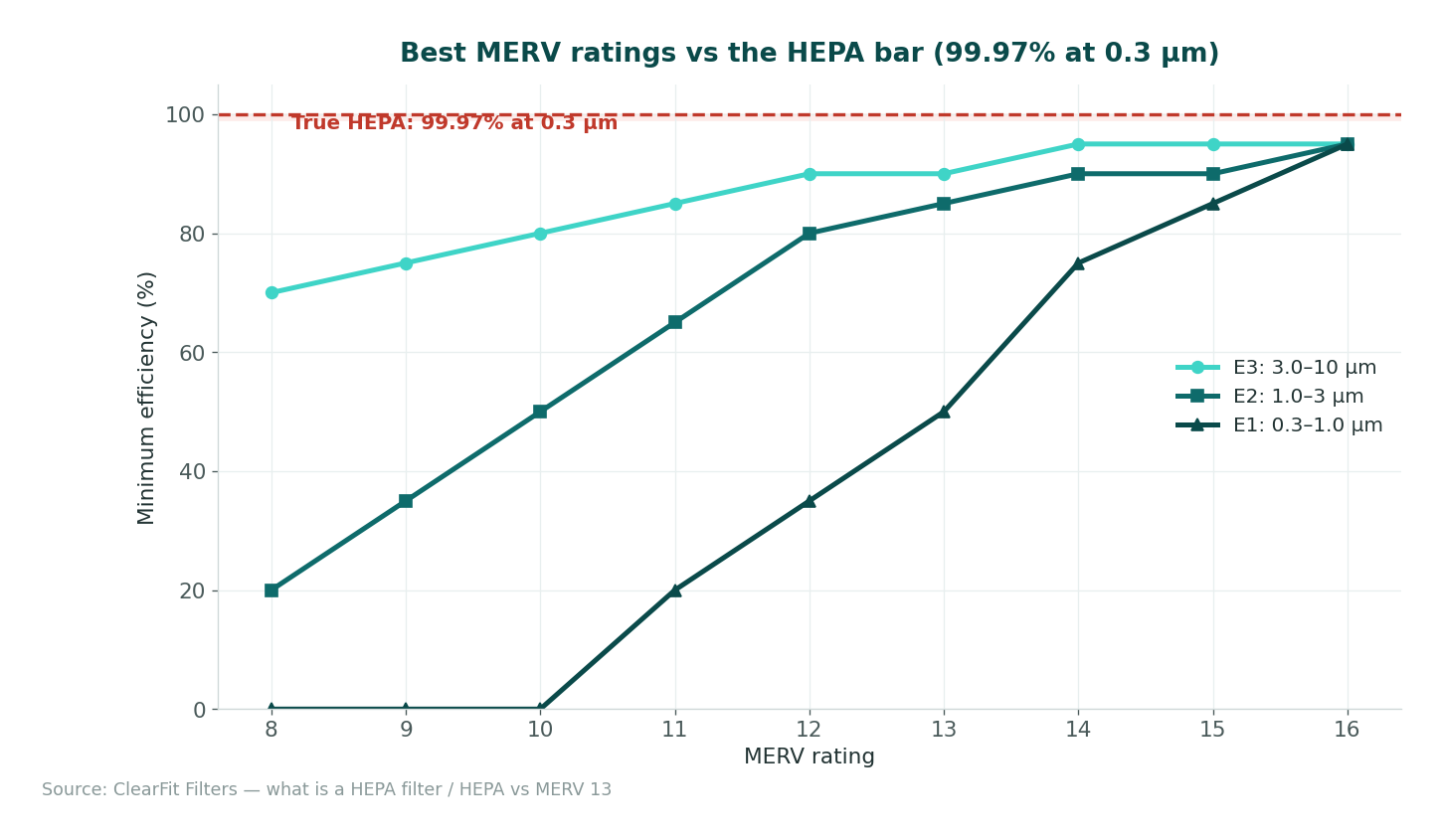

MERV Rating: the ASHRAE 52.2 Scale (and the Hidden Trade-off)

MERV (Minimum Efficiency Reporting Value) is not a marketing number — it is defined by ASHRAE Standard 52.2-2017, “Method of Testing General Ventilation Air-Cleaning Devices for Removal Efficiency by Particle Size.” The test aerosolizes potassium chloride (KCl) particles and measures capture efficiency across three particle-size groups:

  • E1 (Group 1–4): 0.30–1.0 µm — smoke, bacteria, most virus carriers, fine combustion particles
  • E2 (Group 5–8): 1.0–3.0 µm — legionella, fine dust, auto emissions, pet dander fines
  • E3 (Group 9–12): 3.0–10 µm — pollen, dust mites, mold spores, cement dust, hair

A filter’s MERV is the worst-case efficiency across these groups under load. Simplified scale:

MERVE3 (3.0–10 µm)E2 (1.0–3.0 µm)E1 (0.30–1.0 µm)Typical Use
1–4<20%——Furnace dirt protection only
635–50%——Builder-grade minimum
8>70%<35%—Standard residential baseline
11>85%65–80%<20%Better residential / light allergy
13>90%>85%<50%Allergy, asthma, post-2020 new-construction code
14>90%>90%75–85%Hospital-grade general
16>95%>95%>95%Cleanroom / surgical ante-room

The trade-off nobody warns you about

Higher MERV means finer, denser media, which means higher resistance for the same airflow. Going from MERV 8 to MERV 13 on a 1-inch filter typically adds 0.05–0.15 in. WC of clean resistance — and a loaded MERV 13 climbs far faster than a loaded MERV 8 because there is less spare media to hold dust. Practical consequence: if you upgrade MERV, shorten your interval. A MERV 13 1-inch filter often needs changing at 45–60 days where a MERV 8 reaches 90 days comfortably. Homeowners who “upgrade” to MERV 13 and keep a 90-day schedule are the ones who freeze their evaporator coils.

This is also why 4–6 inch media filters exist at all: they let you run MERV 13–16 without the runtime penalty, because the pleat area absorbs the resistance that would choke a 1-inch.

Static Pressure: the Number That Actually Breaks Your System

A residential air handler is designed around a total external static pressure (TESP) of about 0.50 in. WC (inches of water column) — the number used by ACCA (Air Conditioning Contractors of America) Manual J/Q and most OEM blower curves. The filter is one of the resistance components the blower must overcome, alongside the coil, ductwork, registers, and any zoning.

A clean filter contributes a small slice of that budget — a 1-inch MERV 8 roughly 0.05–0.10 in. WC, a 4-inch MERV 11 around 0.10–0.20 in. WC. But a loaded filter does not fail gradually: as the media fills, resistance rises on a steep curve. A badly neglected 1-inch filter can add 0.30–0.50 in. WC on its own — the entire design budget of the system — leaving the coil starved and the blower running in a near-stall condition.

What happens past the budget:

  • Evaporator coil freezing — low airflow drops the coil below freezing, ice builds, airflow falls further, and the compressor runs liquid-flooded. This is the single most common “AC stopped cooling” call after a neglected filter.
  • Blower motor stress — permanent-split-capacitor (PSC) motors slow down and overheat; variable-speed ECM motors ramp up trying to hold airflow, drawing more amps and shortening bearing life. ECM motors are more sensitive to dirty filters, not less.
  • Efficiency collapse — the U.S. Department of Energy reports that replacing a dirty filter can improve HVAC efficiency by 5–15%; conversely, running with a clogged filter costs you that same 5–15% every billing cycle, month after month, plus the repair bill when something fails.
  • Heat exchanger cracking (furnaces) — in heating mode, insufficient airflow lets the heat exchanger run hotter than designed; over seasons this cracks the exchanger and creates a carbon-monoxide path.

A filter is not a “nice to have for air quality.” It is a pressure-management device, and overdue replacement is the most common root cause of premature HVAC failure.

Brand-Specific Filter Life: 4–6 Inch Media, Side by Side

If your system shipped with a cabinet-style media filter (the kind that slides into a metal housing next to the air handler), the replacement interval is largely set by the OEM cartridge design. These are the common North-American platforms and their stated service intervals, pulled from each manufacturer’s published service literature:

OEM PlatformMedia Cartridge (example)Nominal SizeMERVOEM-Stated Life
Carrier Infinity / Comfort seriesFILXXCARFILTCAB / FILCABCAR0204–5″MERV 10–136–12 months
Trane / American Standard PerfectFitBAYFTAH20 / FLR060574–5″MERV 8–136–12 months
Lennox Healthy ClimateX6673, X8788, 20×25×55″MERV 10–116–12 months
Lennox Healthy Climate CarbonClean 16HCF20-165″MERV 16~12 months
Goodman / Amana / Daikin media cabinetBFMasset / generic MERV 114–5″MERV 8–116–12 months
Honeywell ( grille cabinet)FC100A / FC200E4–5″MERV 10–136–12 months
Space-Gard / AprilAire (legacy)201/2200 / 213/24004–6″MERV 10–136–12 months

Three practical takeaways from this table:

  1. 6–12 months is the real industry cluster for 4–6 inch media — the spread reflects household load, not cartridge quality. A 12-month rating assumes a single pet, moderate dust, and a right-sized system; a 6-month outcome is normal for multi-pet or high-runtime homes.
  2. The Lennox CarbonClean 16 is the outlier at 12 months even at MERV 16 — confirmed in independent testing — because its 5-inch pleat pack is unusually deep for the MERV.
  3. Replacement parts cross brand lines. PartSeed keeps cross-referenced equivalents for these OEM cartridges (same cabinet dimensions, same or higher MERV, often at 30–50% below OEM pricing) — see the filter models by brand index.

The Six Variables That Override the Schedule

The calendar interval is a default. These six factors shorten it — and any guide that lists them without telling you how much to shorten is not actionable.

VariableEffect on IntervalAdjustment
1+ shedding petsHair + dander load the media fastMove to next-shorter band (90→60 days, 12→9 months)
Allergies / asthma / immune issuesYou want MERV 11–13 and a fresh filterCheck monthly; never exceed 60 days on 1″
Large home (>2,500 sq ft) or high ceilingsMore volume → more air → more dust captured per hourShorten ~30%
Peak season (summer AC / winter heat)Blower runs near-continuous; hours, not days, decideTrack runtime; expect 2–3× faster loading
Poor outdoor air / wildfire smoke / constructionFine particulate loads E1/E2 media rapidlyInspect after every smoke event; change early
High occupancy / kids / vacation rentalMore people, more traffic, more resuspended dustShorten one band; check monthly

Conversely: a single occupant, no pets, in a mild climate, in a well-sealed home, can often stretch a 1-inch filter to 90 days and a 4-inch media to the full 12 months. The defaults already assume that case.

Hours of Use vs. Calendar Time: the Smarter Countdown

The single most underused idea in filter maintenance is that the industry standard is measured in blower hours, not wall-clock days. Most OEM engineering specs (and the old ACCA Standard 4 / QM maintenance guidance) reference roughly 200–300 hours of fan operation as one filter cycle for a 1-inch pleated filter.

At typical residential duty cycles:

  • Shoulder season (spring/fall, light use): blower runs ~4–6 h/day → a 250-hour filter cycle takes 6–10 weeks
  • Peak summer (Florida, Texas, desert SW): blower runs ~12–18 h/day → the same 250-hour cycle takes 2–3 weeks
  • Mild coastal / Pacific NW: blower runs ~2–4 h/day → a 250-hour cycle stretches to 10–15 weeks

This is exactly why many programmable and smart thermostats (Carrier Côr, ecobee, Honeywell Home, Nest) include a “run-time countdown” feature that tracks blower hours and alerts you at 250, 500, or 1,000 hours. It is more accurate than a date, because a filter does not know what month it is — it only knows how much air you pushed through it. If your thermostat has the feature, turn it on and use it as your primary trigger.

How to Actually Know It’s Time (four inspection methods)

  1. Hold-to-light test — pull the filter and hold it up to a bright window or lamp. If you cannot see light through most of the media, you are past due. This is the classic Home Depot / Consumer Reports check, and it works for most households.
  2. Compare to a new one — keep one spare on hand. Side-by-side, a “still fine” filter looks almost white; a “needs changing” filter looks gray-brown across the whole face, not just at the edges.
  3. Static pressure gauge / manometer — the pro method. A $20–40 Magnehelic or digital manometer across the filter cabinet tells you the pressure drop. Above 0.30 in. WC across the filter alone, replace it. This is what commercial HVAC techs use, and it is the only method that catches a filter loading up before performance suffers.
  4. Thermostat runtime alert — set the runtime counter; replace when it fires. Set it to a lower threshold (e.g., 200 h for 1″ MERV 11, 500 h for 4″ MERV 11) than the factory default if you have pets or allergies.

What Happens If You Don’t Change It (the failure sequence)

Filters are cheap (a few dollars to ~$50). The damage chain is not:

  1. Month 1 overdue — energy bill creeps up 5–15% (DOE), airflow at registers feels softer, house takes longer to cool/heat.
  2. Month 2–3 overdue — coil starts sweating and may freeze in cooling mode; furnace heat exchanger runs hot; ECM blower draws higher amps. You may not notice yet.
  3. Month 4+ overdue — frozen coil melts and floods the drain pan; compressor short-cycles; furnace trips on high-limit; the first service call lands. Typical cost: a coil clean ($150–400), an emergency visit ($150–300), or — if the compressor or heat exchanger failed — $2,000–8,000.

A $20 filter on schedule is the cheapest insurance in homeownership.

FAQ

How often should I change my furnace filter? Every 60–90 days for a 1-inch pleated furnace filter (30 days for fiberglass, 30–60 days for a 1-inch MERV 13), and every 6–12 months for a 4–6 inch media cartridge. “Furnace filter,” “AC filter,” and “HVAC filter” are the same physical filter in a forced-air system — the blower pushes all household air through it in both heating and cooling season, so the schedule does not change with the season, only with runtime.

How do I know when my HVAC air filter needs to be replaced? Hold it up to a bright light; if you cannot see light through most of the media, replace it. Better: track blower runtime and replace at 200–300 hours for a 1-inch, 500–1,000 hours for a 4–6 inch media filter. Best: install a manometer and replace when pressure drop across the filter exceeds ~0.30 in. WC.

Can I run my HVAC without a filter for one day? Yes, for a short time only — the blower will not be damaged and you will get airflow immediately. But every hour without a filter lets dust load directly onto the evaporator coil and wheel, and that build-up is far harder (and more expensive) to clean than a filter is to swap. Treat “no filter” as an emergency-only condition, never a habit.

How often should a MERV 11 filter be changed? A 1-inch MERV 11 typically needs changing every 60–90 days; a 4-inch MERV 11 every 6–9 months; a 5-inch MERV 11 up to 12 months in a light-load home. MERV 11 is denser than MERV 8, so for the same thickness, expect to shorten the interval by ~30% versus what a MERV 8 would last.

What happens if I don’t change my HVAC filter? Energy use rises 5–15% (DOE), airflow falls, the evaporator coil freezes, the heat exchanger overheats, the blower motor works harder and fails sooner, and you risk a $2,000–8,000 compressor or heat-exchanger failure. The filter is a pressure-management device, not just an air-quality accessory.

Does a higher MERV rating mean I change the filter more or less often? More often, at the same thickness. Higher MERV media is denser and captures more, so it loads faster. The way to get long life and high MERV is to increase thickness — a 4–5 inch media filter at MERV 11–13 lasts 6–12 months, while a 1-inch MERV 13 may need changing in 45–60 days.
