GE Refrigerator Water Filter Bypass Plug: When to Use One, Which Part Fits, and How to Install It

Posted by

September 10, 2026

On September 10, 2026

A GE refrigerator water filter bypass plug is a dummy cartridge that occupies the filter slot so the fridge dispenses unfiltered water while no filter is installed — and GE needs one more than most brands, because many GE filter housings will not pass water (or will not stop dripping) with an empty slot. The part is cheap (genuine GE plugs list around $24.99), installs in under a minute with a quarter-twist, and is the correct answer in three specific situations — and the wrong answer in one. This guide covers when a bypass makes sense, which of the GE plug part numbers fits your slot, installation, and the water-quality honesty that the product pages leave out.

Why does a dedicated tutorial even exist? Search results for this topic are nothing but product listings — GE’s own parts store, Amazon, and retailer PDPs, all of which assume you already know you need the part. Nobody explains the decision. Meanwhile the questions pile up in forums: Can I run my GE fridge with no filter and no plug? Which plug fits my XWFE slot? Will the filter light stop complaining? That’s the gap this page fills.

Quick Answer: What a Bypass Plug Is and Does

The plug replicates a filter’s mechanical geometry — the neck, the O-ring seats, the water-path shuttles — without any filtration media inside. Water enters, passes through the plug’s open internal channel, and exits to the dispenser untouched. It exists because GE filter housings are designed around a cartridge always being present: the inlet valve seats against the cartridge neck, and an empty bore can either block flow entirely or weep slowly past the unseated valve.

GE slot generation	Bypass part number	Fits which fridges	Notes
XWFE / XWF slot (2017+ twist-in, left-front grille or ceiling)	WR17X33825	Current GE and GE Profile standard lines	The common one; also sold under the “XWFE bypass” name
Café / premium RFID lines	WR17X23645	Café-series filter housings	Check model against the parts listing — Café slots differ from standard GE
Older MWF / GWF slot (older side-by-sides)	MWF-era bypass (listed by refrigerator model)	Pre-2017 MWF-generation machines	Match by fridge model number, not by filter number

If you are unsure which generation you have: the filter itself is labeled. XWFE on the cartridge means the WR17X33825 plug; MWF means the older part. When ordering, cross-check the plug listing against your refrigerator’s model number (the sticker is inside the fresh-food compartment, usually on the left wall) — plug fitment follows the housing generation, which follows the fridge, not the cartridge you last bought.

When a Bypass Plug Is the Right Call

Legitimate use #1: the filter ran out and the replacement is days away. Some GE housings shut off dispenser flow with no cartridge present. The plug restores water (and ice) immediately. This is the mundane case — the plug as a shelf item you use twice a decade.

Legitimate use #2: upstream filtration already exists. If the fridge’s water line runs through a whole-house system or an under-sink RO unit, the fridge filter is a redundant third pass. An RO membrane removes far more than any refrigerator cartridge ever will — running its product water through a fridge carbon block adds nothing measurable. In this setup the bypass plug is not a downgrade; it removes a redundant consumable and one 6-month maintenance item. (The sizing logic for upstream systems is covered in the whole-house filter sizing guide.)

Legitimate use #3: the filter housing is damaged and awaiting repair. A cracked housing bore or failed eject mechanism can make cartridge seating impossible. The plug keeps the fridge functional while you source a housing. This pairs with the extraction guides if a stuck filter is what damaged the slot — see stuck filter fixes for the general technique.

When It Is the Wrong Call (the Honesty Section)

If the fridge’s water line is plain tap water, bypassing means your dispenser and ice are unfiltered — full stop. The plug does not “do less filtering”; it does none. Municipal tap water in the US is safe at the plant, but the fridge cartridge is typically what removes the chlorine taste (NSF 42 work) and, on certified cartridges, lead and cysts (NSF 53 work). If you are bypassing to save the $40–60 biannual filter cost on a plain tap line, the honest math is: you are trading away taste-and-lead filtration to save roughly $5 a month. Whether that trade makes sense depends on your local water — your utility’s annual Consumer Confidence Report tells you what is actually in it, and how to read that report is a ten-minute skill.

A pattern worth naming: the “bypass to save money on filters” posts in homeowner forums almost always come from people whose filter light annoyed them, not from people with tested water. If the light is the problem, the fix is a reset, not a bypass — see why filter lights stay on for the four causes and their actual remedies.

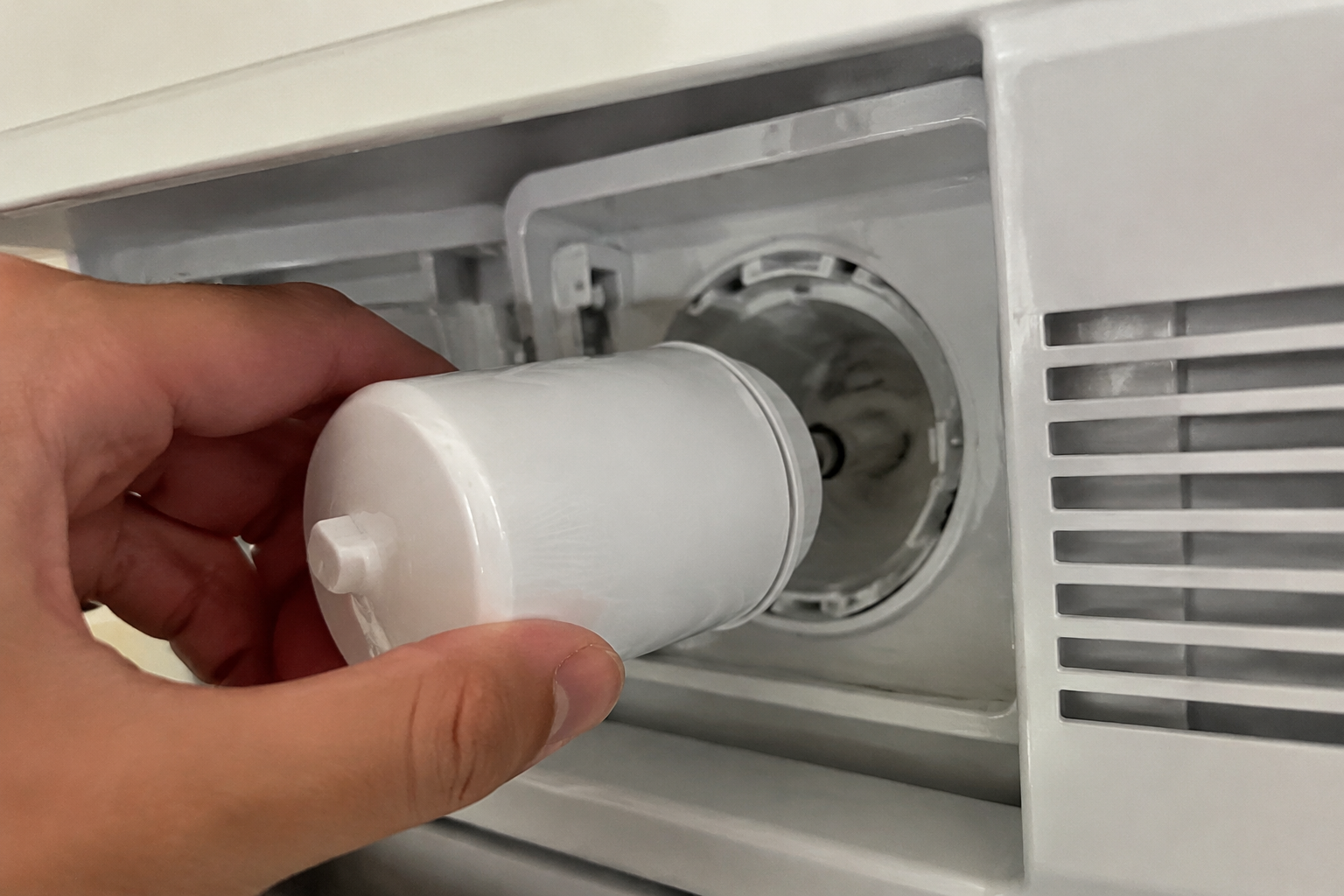

Installation: 3 Steps, One Minute

The plug installs exactly like a filter, minus the flushing:

Remove the old cartridge. Twist the spent filter a quarter-turn counterclockwise (XWFE generation) and pull it straight out. A tablespoon of residual water may drip — have a towel. If the cartridge resists, do not force it; the stuck-filter escalation applies.
Insert the plug and twist clockwise until it stops. You will feel the same bayonet engagement as a cartridge. No protective caps to remove, no O-rings to seat — the plug’s seals are permanent.
Reset the filter indicator. The fridge does not know a plug from a filter — the status light keeps its 6-month countdown regardless. Hold the reset control per your panel type (standard panels: the Reset Filter pad, 3 seconds; touch panels: Settings → Water Filter → Reset — full matrix in the GE filter reset guide).

No flushing needed — there is no carbon media to purge. Dispense a cup and check the joint for drips. A weeping plug seat means the housing bore is scored (previous extraction damage), not that the plug is wrong.

The Question Product Pages Won’t Answer: Can You Run the Slot Empty?

Depends on the generation, and GE does not publish a clean matrix. Observed behavior across owner reports: some XWFE-generation machines dispense normally with an empty slot (the inlet valve seats shut — you simply get no water until a cartridge or plug returns), while others drip slowly past an unseated valve. The drip case is why the plug exists as a product at all. The practical rule: if your fridge dispenses nothing with the slot empty, a plug restores flow; if it drips with the slot empty, a plug stops the drip. Either way the plug is the correct empty-slot state — the only question is whether you needed it urgently or preventively. (Behavior varies by housing revision — treat the drip/no-drip line for your specific model as inferred from owner reports, and test with a towel in place.)

One more XWFE-family note: the RPWFE (RFID-chipped premium cartridge) is a different conversation. RPWFE machines verify the cartridge electronically, and generic cartridges historically triggered “invalid filter” errors — the plug sidesteps that entire mess, which some RPWFE owners consider the plug’s best feature. The full chip-vs-no-chip breakdown is in GE XWFE vs RPWFE vs XWF.

Buying: Genuine vs Universal

Genuine GE plugs list around $24.99 (allfilters and GE parts channels). Universal silicone-plug kits exist for less, but the GE housing’s bayonet geometry is the fitment risk — a universal plug that seats 2mm proud leaves the inlet valve unseated, reproducing the exact drip you bought the plug to stop. At a $10 saving on a part you buy once per decade, genuine-by-part-number is the rational default; if buying universal, confirm the listing names WR17X33825 (or your generation’s number) as the replacement reference.

FAQ

Will the filter light stop coming on with a bypass plug installed?

No. The status light is a 6-month timer, not a water sensor — it counts down exactly the same with a plug installed. Reset it when you install the plug and reset it again every six months, or ignore it entirely; the timer has no safety function.

Does bypassing affect the ice maker too?

The ice maker and dispenser share the same filtered line on most GE models, so yes — bypassed means the ice is unfiltered too. Machines with a separate second filter (some French-door models have a dedicated ice-filter cartridge, e.g., the RPWF-compatible lines) keep that second stage; check whether your model has one before assuming all filtering is gone.

Is bypassed water safe to drink?

If the upstream supply is safe, yes — the plug adds nothing and removes nothing. If the line is plain municipal tap, you lose the fridge cartridge’s chlorine-taste reduction and (on 53-certified cartridges) lead/cyst reduction. Check your utility’s CCR for your local numbers rather than guessing.

Can I leave the plug in permanently?

Mechanically, yes — the plug has no service life. The question is water strategy, not hardware: permanent bypass makes sense when upstream filtration exists or when you have decided fridge-stage filtration is not worth it for your water. Revisit the decision if your water source changes (a new well, a utility switch to chloramine, a lead service line discovery).
