Refrigerator Water Filter Bypass Plug: Every Brand’s Part Number, When Bypassing Makes Sense, and When It Doesn’t

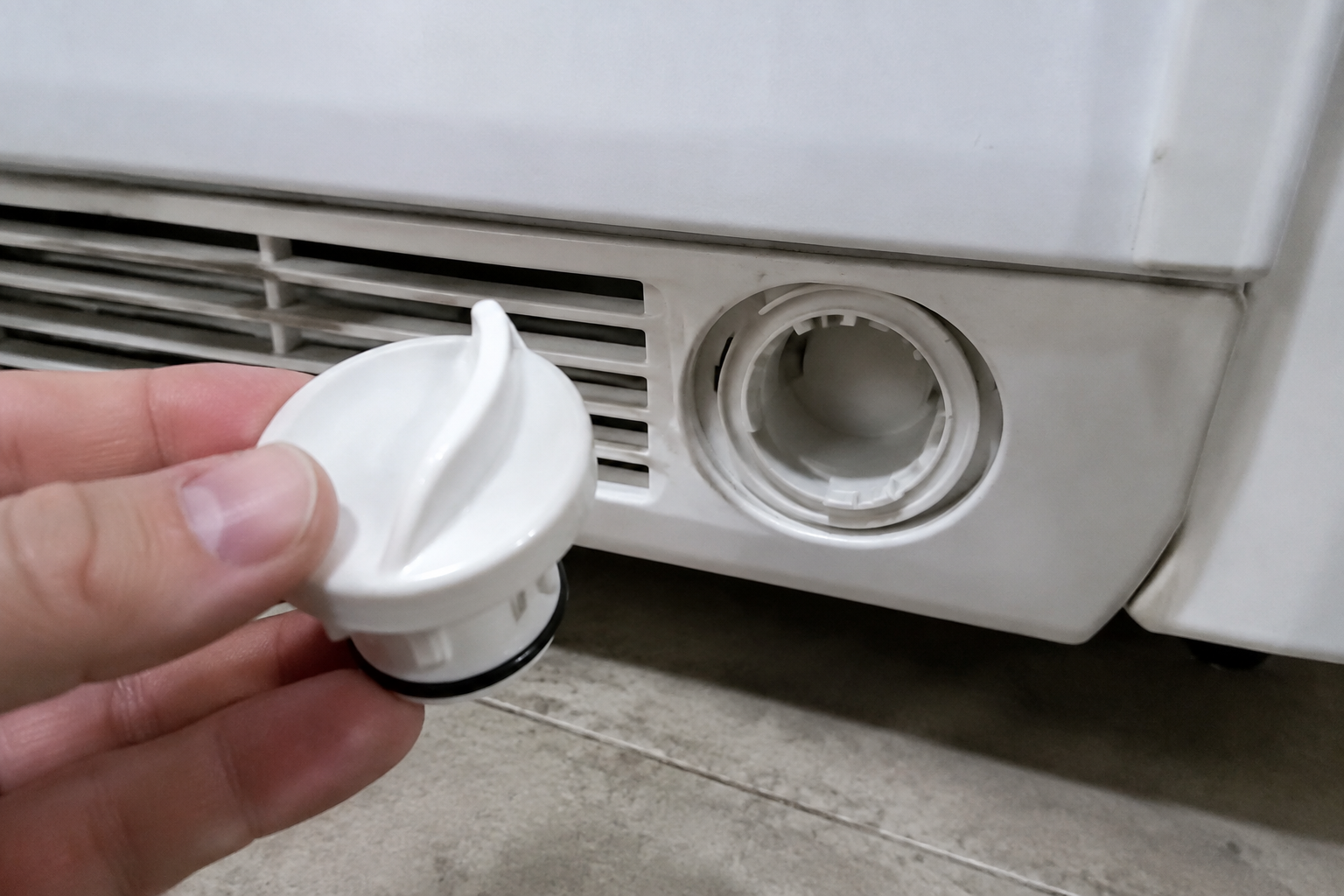

A refrigerator water filter bypass plug is a filter-shaped placeholder with no media inside — water flows through it unfiltered so your fridge can dispense and make ice with no cartridge installed. People bypass for three sane reasons (waiting on a replacement, upstream RO/whole-house filtration already handles the water, damaged housing awaiting repair) and one questionable one (skipping filter costs on plain tap water). This page is the cross-brand hub: what the part is, the plug part numbers for all eight major brands, installation in three steps, and the honest water-quality math the product listings skip.

The search results for bypass plugs are, top to bottom, product pages — Amazon category results, GE parts listings, retailer PDPs. Not one explains which plug fits which fridge or whether you should bypass at all. If you want the deep version for your specific brand, the brand guides are linked at the bottom; this page is the map.

Top Picks at a Glance (2026)

A bypass plug is a stopgap; these are the three cartridges that retire it, by housing generation:

Quick Answer: The 8-Brand Bypass Plug Table

Two table-wide warnings. First, Frigidaire and Bosch fitment follows the refrigerator model, not the filter number — their filter eras overlap more than the other brands, so verify against your model sticker before ordering. Second, Kenmore is a label, not a factory — find the three-digit model prefix (106/253/363/795) and use that manufacturer’s plug. The Kenmore decoder makes this a ten-second lookup.

Why Bypass Plugs Exist at All

Filter housings are engineered assuming a cartridge is always seated: the inlet valve seals against the cartridge neck, and water routing depends on the cartridge’s internal geometry. Remove the cartridge and one of two things happens depending on housing design — flow shuts off entirely (the fridge “protects” the line), or water seeps past the unseated valve and the housing weeps. The plug replicates the cartridge’s neck, O-ring seats, and open water channel without any carbon inside, so the housing behaves exactly as if a filter were present.

The Samsung plug illustrates how far this goes: DA97-08004A is not a plug at all but a short dummy cartridge (“HAF-DIN bypass”) with the same bayonet base as a real HAF filter — Samsung’s housing needed the full cartridge geometry to route water. Same idea, different shape. Details in the Samsung bypass guide.

The Bypass Decision Tree

Work top to bottom — the first match is your answer:

1. Is upstream water already filtered (whole-house system or under-sink RO feeding the fridge line)? → Bypass is rational and permanent-install is fine. An RO membrane rejects 90%+ of dissolved solids; a fridge carbon block after it is a redundant third pass and one more thing to change every six months.
2. Is the filter out and the replacement is in the mail? → Plug as a bridge. Cheap, instant, restore dispenser + ice.
3. Is the filter housing damaged (cracked bore, failed ejector) with a repair pending? → Plug keeps the fridge usable. Pair it with the stuck-filter guide if extraction caused the damage.
4. Is the goal “stop buying filters” on a plain tap line? → Stop. You are trading chlorine-taste reduction and (on 53-certified cartridges) lead/cyst reduction to save roughly $5–8 a month. Check your utility’s Consumer Confidence Report first — reading it takes ten minutes and turns this from a guess into a decision.
5. Is the actual problem the nagging filter light? → That is a reset problem, not a filtration problem. Four causes and fixes: filter light stays on after replacement.

Installation: Universal 3 Steps

Every brand follows the same sequence with brand-specific motions (twist vs. push):

1. Remove the cartridge. Twist-type slots: quarter-to-half turn counterclockwise, pull straight out. Push-in slots: press the eject button fully and hold it while pulling. Towel in hand — a little residual water always drips.
2. Insert the plug the same way the cartridge went in. Twist types: push and rotate clockwise to the stop. Push types: push until the latch clicks. The plug seats with the same positive engagement as a filter; no caps, no O-rings to handle, no flushing (there is no media to purge).
3. Reset the filter status light. The fridge cannot tell a plug from a cartridge — the 6-month timer keeps running. Standard panels: hold the filter-reset control ~3 seconds. Touch panels: Settings → Water Filter → Reset. The brand reset guides are linked below.

Check the joint with a dry paper towel after the first dispense. A slow weep at the plug seam means the housing bore is scored (typical after a rough extraction), not that the plug is defective.

The Water-Quality Honesty Section

Bypass means unfiltered — the plug adds nothing and removes nothing. Whether that matters depends entirely on what your fridge line feeds it:

• Municipal tap, no upstream treatment: you lose chlorine-taste/odor reduction (the NSF 42 work every certified cartridge does) and, on 53-certified cartridges, lead and cyst reduction. Post-1986 plumbing and a clean CCR make this a taste trade; pre-1986 homes or a lead service line make it a health trade. Test, don’t guess.
• Upstream whole-house carbon system: the fridge stage was already redundant for chlorine; bypass costs you nothing measurable.
• Under-sink RO on the fridge line: the fridge filter was the third pass; removing it improves flow rate slightly and removes a maintenance item.

The conceptually useful frame: a bypass plug does not make water worse — it makes the fridge honest about what its water actually is. If that water needs treating, treat it upstream where real equipment lives; if it does not, the fridge cartridge was decoration.

Machines With No Bypass Available

Not every housing accepts a plug. Some current French-door models have no listed bypass accessory at all — the housing was designed cartridge-only, and the only no-filter states are “empty slot” (which may drip or shut off flow) or a housing swap. If your model has no plug listing: search the parts diagram by refrigerator model number, not by filter number; confirm with the parts seller; and if nothing exists, the fallback is keeping a cartridge in service or adding an inline filter upstream of the fridge (a 1/4-inch inline cartridge on the supply line filters before the housing, independent of what sits in the slot — see the inline installation guide for the full procedure). Treat “no bypass exists for model X” claims in forums as unverified until the parts diagram confirms — listings change.

FAQ

Will my ice maker work with a bypass plug installed?

Yes — dispenser and ice maker share the same line, and the plug restores full flow exactly like a cartridge. Some premium machines with a separate dedicated ice filter keep that second stage independent of the main slot.

Does the filter light need resetting after installing a plug?

Yes, and it will need it again every six months after — the light is a timer with no water sensing. It cannot tell plug from cartridge from stale cartridge.

Are universal bypass plugs safe?

The fitment risk is the housing bayonet geometry, not water safety (there is nothing in a plug to contaminate anything). A universal plug that seats slightly proud leaves the inlet valve unseated — you get a drip, not a hazard. Brand-correct part numbers avoid the fitment lottery for a few dollars more.

Can I use a bypass plug to test whether my filter was causing slow flow?

Yes, and it is a genuinely good diagnostic. If flow stays slow with the plug in, the restriction is upstream of the filter (supply valve, line kink, inlet valve) — the cartridge was never the problem. If flow returns to full, the cartridge (or its installation) was the restriction. See water filter not working after replacement for the full flow diagnosis tree.

Sources & References

• GE / Samsung / LG / Whirlpool / Frigidaire official parts catalogs — part numbers WR17X33825, DA97-08004A, ABN73019101, W11395888, 242294402 and fitment statements. Official documentation.
• Whirlpool supersession chain (12664501 → WP61003791 → W11395888) — parts-channel listings. Official documentation (supersession chain explicit).
• Retailer PDP pricing bands — Official documentation (explicit pricing).
• NSF/ANSI 42 & 53 scope — what a bypassed line forgoes. Official standard.
• No-bypass model claims — Community discussion，labeled as unverified pending parts-diagram confirmation.
